型号

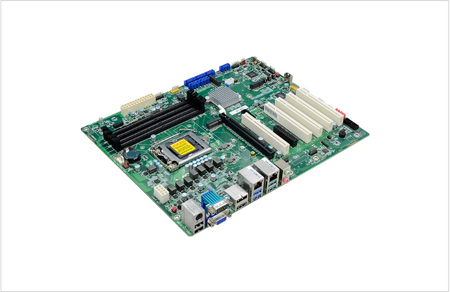

EB-631-H420

处理器

10th Generation Intel® LGA 1200 socket Processors,TDP support up to 125W

系统芯片组

Intel® H420E Chipset

系统内存

2*288-pin Non-ECC UDIMM up to 64GB,Dual Channel DDR4 2400/2666/2933MHz

BIOS

Insyde SPI 256Mbit

以太网络

1*Intel® I211AT PCIe (10/100/1000Mbps), 1*Intel® I219LM/I219V (10/100/1000Mbps)

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232 w/power)(DB-9)

USB

4*USB 3.2Gen1,2*USB 2.0

显示

1*DP++, 1*VGA, 1*HDMI

音源

1*Line-out,1*Mic-in,1*Line-in(opt.,MOQ required)

内部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.54mm pitch), 4*RS-232(2.54mm pitch)

USB

2*USB 3.2Gen 1, 2*USB 2.0(2.54mm pitch,colay vertical Type A,opt:MOQ required)

音效

1*Front Audio Header,1*S/PDIF

DIO

1*16-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s)

PS/2

1*PS/2(mini-DIN-6)

扩展槽

1*PCIe x16（Gen3), 1*PCIe x4(Gen 3), 5*PCI 1*M.2 M Key(PCIe*4 NVMe share with PCIe*4 slot,opt.,MOQ required)

显示

VGA+DP++/VGA+HDMI/DP+++HDMI(Dual Display) VGA:resolution up to 1920x1200 @ 60Hz DP++:resolution up to 4096x2160 @ 60Hz HDMI:resolution up to 4096x2160 @ 24Hz

音频

Realtek ALC888

温度

工作温度: -5 to 65°C, 存储温度: -40 to 85°C

湿度

工作湿度:5 to 90% RH, 存储湿度:5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
