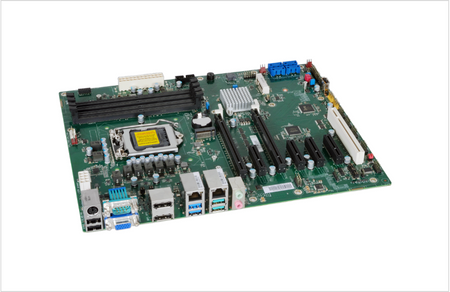

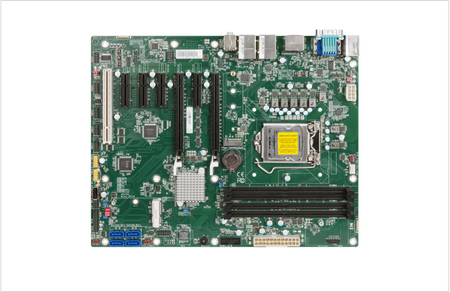

型号

EB-650-Q370

处理器

8/9th Generation Intel® Core™/Pentium®/Celeron® Processors, LGA 1151 socket

系统芯片组

Intel® Q370 Chipset

系统内存

4*288-pin DIMM up to 128GB,Dual Channel DDR4 2400/2666MHz

BIOS

AMI SPI 128Mbit

以太网络

1*Intel® I211AT PCIe (10/100/1000Mbps) 1*Intel® I219LM PCIe with iAMT12.0(10/100/1000Mbps)(only Corei7/i5 supports iAMT)

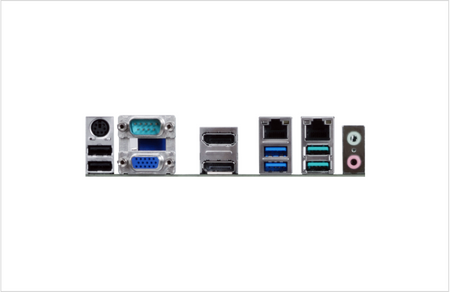

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232 w/power)(DB-9)

USB

2*USB 3.1 Gen 2, 2*USB 3.1 Gen 1, 2*USB 2.0

PS/2

1*PS/2

显示

2*DP++,1*VGA

音源

1*Line-out, 1*Mic-in,1*Line-in (opt., MOQ required)

内部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.54mm pitch), 4*RS-232(2.54mm pitch)

USB

2*USB 3.1 Gen 1(2.00mm pitch), 4*USB 2.0(2.54mm pitch)(1*USB 2.0 colay vertical Type A)(opt.,MOQ required)

音效

1*Front Audio Header,1*S/PDIF

DIO

1*8-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s), SATA3(R5)shared with miniPCIe(SATA), default at mini PCIe RAID 0/1/5/10

扩展槽

2*PCIe x16（Gen3)(1*16 signal or 2*8 signals), 3*PCIe x4(Gen 3) 1*PCIe*1(Gen 3) 1*PCI 1*Full-sized Mini PCIe(PCIe/SATA/USB2.0),share with SATA(R5) 1*M.2 2242/2260/2280 M key(PCIe Gen3*4 NVMe/SATA)

显示

1*VGA：resolution up to 1920x1200 @ 60Hz 2*DP++ :resolution up to 4096x2160 @ 60Hz

音频

Realtek ALC888

温度

工作温度: -5 to 65°C, 存储温度: -30 to 60°C with RTC Battery;-40-85°C without RTC Battery

湿度

工作湿度:5 to 95% RH, 存储湿度:5 to 95% RH

尺寸

305mm (12")*244mm (9.6")
