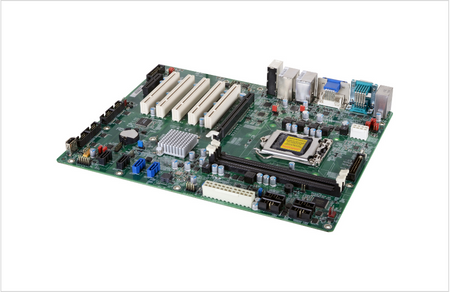

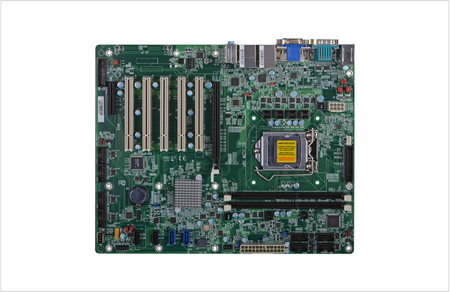

型号

EB-632-H81

处理器

4th Generation Intel® Core™ processors,LGA 1150 socket

系统芯片组

Intel® H81 Chipset

系统内存

Two 240-pin DIMM up to 16GB,Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

以太网络

2*Intel® I210 PCIe (10/100/1000Mbps)

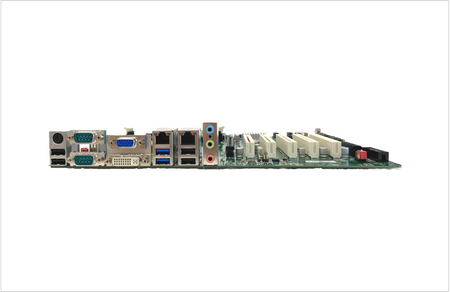

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

2*RS-232 (RS-232 w/power)(DB-9)

USB

2*USB 3.0,4*USB 2.0

PS/2

1*PS/2

显示

1*DVI-I (DVI-D signal),1*VGA

音源

1*Line-out,1*Mic-in,1*Line-in

内部I/O接口

串行端口

7*RS-232 (2.54mm pitch), 1*RS-422/485 (2.54mm pitch)

USB

2*USB 2.0,1*Vertical USB 2.0

音效

1*Audio (Line-out/Mic-in),1*S/PDIF

DIO

1*8-bit DIO

SATA

2*SATA 3.0 (up to 6Gb/s), 2*SATA 2.0 (up to 3Gb/s)

扩展槽

1*PCIe x16 (Gen 2), 1*PCIe x4 (Gen 2), 5* PCI

显示

1 * DVI-I (DVI-D signal):resolution up to 1920x1200 @ 60Hz 1 * VGA:resolution up to 1920x1200 @ 60Hz

音频

Realtek ALC886

温度

工作温度：0 to 60°C, 存储温度：-20 to 85°C

湿度

工作湿度：5 to 90% RH, 存储湿度：5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
