Part Number

EB-330-H310

处理器

8/9th Generation Intel® Core™ /Pentium®/Celeron®Processors, LGA 1151 Socket

芯片组

Intel® H310 Chipset

内存

2*288-pin DIMM up to 64GB,Dual Channel DDR4 2400/2666MHz

BIOS

Insyde SPI 128Mbit

以太网络

1*Intel® I211AT (10/100/1000Mbps)

1*Intel® I219V (10/100/1000Mbps)

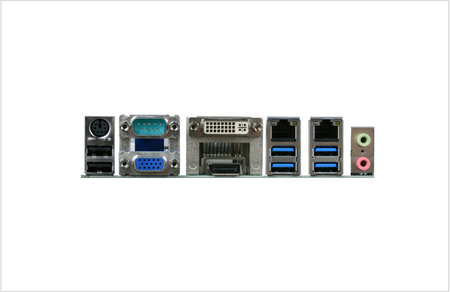

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232/422/485(RS-232 w/power)(DB-9)

USB

4*USB 3.1 (Gen1), 2*USB 2.0

PS/2

1*PS/2（mini-DIN-6）

显示

1*VGA,1*DVI-I (DVI-D signal) ,1*DP++

AUDIO

1*Line-out, 1*Mic-in, 1*Line-in (opt.)

内部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/ power)(2.54mm pitch, 4*RS-232)

USB

4*USB 2.0(2.54mm pitch)

音效

1*S/PDIF, 1*Front Audio Header

SATA

4*SATA 3.0 (up to 6Gb/s)

DIO

1*8-bit DIO

扩展接口

1*PCIe x16 (Gen 3),1*PCIe x4 (Gen 2),2*PCI

显示

1*VGA:resolution up to 1920x1200 @ 60Hz

1*DVI-I (DVI-D signal):resolution up to 1920x1200 @ 60Hz

1*DP++:resolution up to 4096x2304 @ 60Hz

音频

Realtek ALC888

温度

工作温度: 0 to 60°C,存储温度: -40 to 85°C without RTC Battery；-30 to 60°C with RTC Battery

湿度

工作湿度: 5 to 90% RH,存储湿度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
