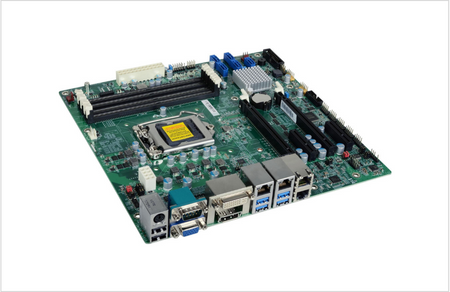

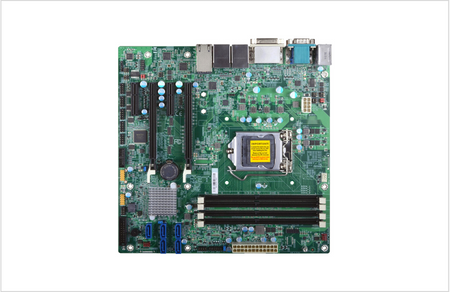

Part Number

EB-331-Q170

处理器

6/7th Generation Intel® Core™ /Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 95W

芯片组

Intel® Q170 Chipset

内存

4*288-pinN DIMM up to 64GB,Dual Channel DDR4 2133/2400MHz

BIOS

Insyde SPI 128Mbit

以太网络

3*Intel®I211AT PCIe (10/100/1000Mbps)

1*Intel®I219LM PCIe with iAMT11.0 (10/100/1000Mbps)(only Core i7/i5 supports iAMT)

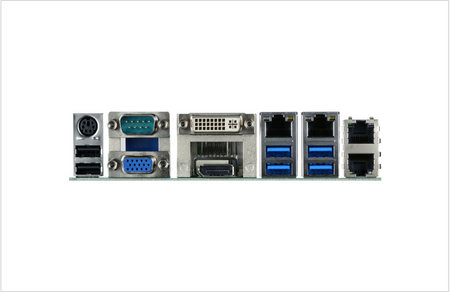

背部I/O接口

以太网络

4*GbE (RJ-45)

串口

1*RS-232/422/485(RS-232 w/power)(DB-9)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2(mini-DIN-6)

显示

1*VGA,1*DVI-I(DVI-D signal),1*DP++

内部I/O接口

串行端口

1*RS-232/422/485(RS-232 w/power) (2.54mm pitch) 4*RS-232 (2.54mm pitch)

USB

2*USB 3.0 (2.00mm pitch) 4*USB 2.0 (2.54mm pitch) or2 x USB2.0 (2.54mm pitch) 1*Vertical USB 2.0 (opt., MOQ required)

音效

1*Front Audio Header,1*S/PDIF

SATA

5*SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

DIO

1*8-bit DIO

扩展接口

2*PCIe x16 (1 x16 or 2x8 signal)(Gen 3), 2*PCIe x4 (Gen 3) 1*M.2 2260/2280 M key(SATA3.0/PCIe Gen3 x 2 NVMe）

显示

1*VGA:resolution up to 1920x1200 @ 60Hz

1*DVI-I (DVI-D signal) :resolution up to 1920x1200 @ 60Hz

1*DP++:resolution up to 4096x2106 @ 60Hz

音频

Realtek ALC888S-VD2-GR

温度

工作温度: 0 to 60°C,存储温度: -30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

湿度

工作湿度: 5 to 90% RH,存储湿度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
