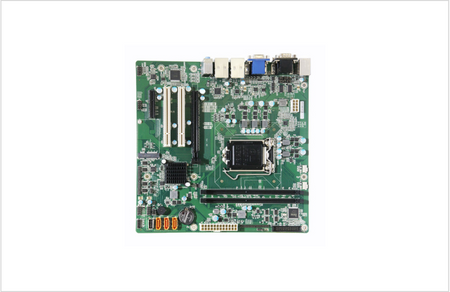

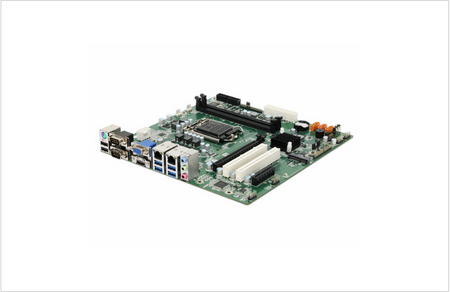

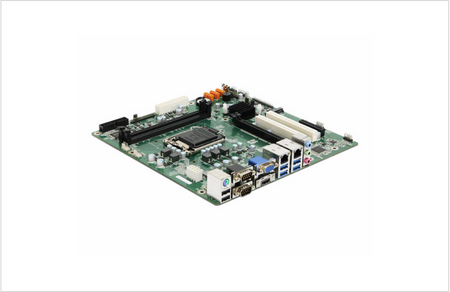

Part Number

EB-330C-H110

处理器

6-9th Generation Intel®Core™ i7/i5/i3 LGA1151 processors

芯片组

Intel® H110 Chipset

内存

2*240-pin DIMM up to 32GB, Dual Channel DDR4

BIOS

64Mb SPI FLASH

以太网络

2*Intel® I219/211 PCIe (10/100/1000Mbps)

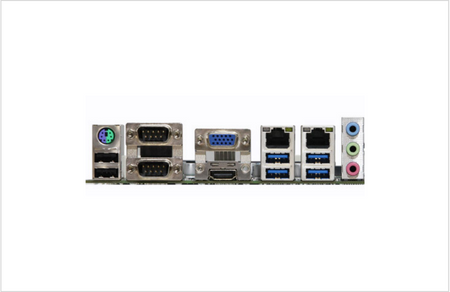

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232/485/422,1*RS-232/485

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2

显示

1*HDMI,1*VGA

AUDIO

1*Line-out,1*Mic-in,1*Line-in

背部I/O接口

串行端口

4/8*RS-232

USB

4*USB 2.0

SATA

3*SATA3.0, 1*mSATA

GPIO

1*2x5 Pin 2.0mm GPIO，4*In，4*Out

LPT

1*LPT

扩展接口

1*PCIe x16,1*PCIe x4,2* PCI

显示

1*VGA：resolution up to 1920x1080 @ 60Hz

1*HDMI：resolution up to 4096x2304 @ 24Hz

音频

Realtek ALC892

温度

工作温度: 0 to 60°C,存储温度: -20 to 85°C

湿度

工作湿度: 5 to 95% RH, 无凝露

尺寸

245mm (9.6")*245mm (9.6")
