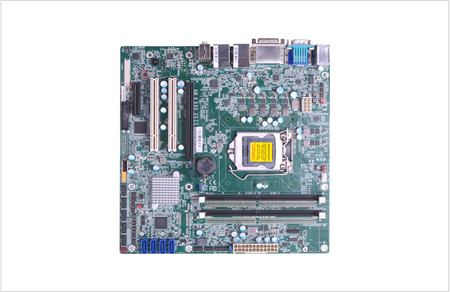

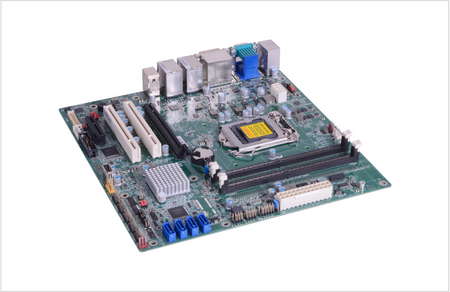

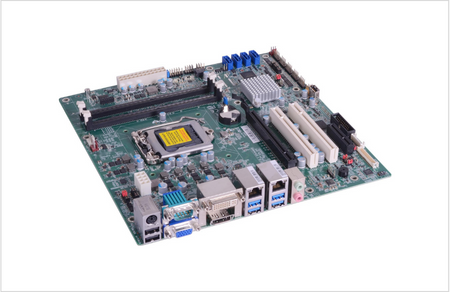

Part Number

EB-330-H110

处理器

6/7th Generation Intel® Core™ /Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 95W

芯片组

Intel® H110 Chipset

内存

2*288-pin DIMM up to 32GB Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

以太网络

1*Intel® I211AT PCIe (10/100/1000Mbps) ,

1*Intel® I219V PCIe (10/100/1000Mbps)

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232/422/485(RS-232 w/power)(DB-9)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2(mini-DIN-6)

显示

1*VGA ,1*DVI-I (DVI-D signal) ,1*DP++

AUDIO

1*Line-out,1*Mic-in,1*Line-in(opt., MOQ required)

内部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/ power)(2.54mm pitch) ,4*RS-232 (2.54mm pitch)

USB

2*USB 2.0 (2.54mm pitch)，1*Vertical USB 2.0 (type A)

音效

1*Audio (Line-out/Mic-in)(opt., MOQ required) 1*S/PDIF

SATA

4*SATA 3.0 (up to 6Gb/s)

DIO

1*8-bit DIO

扩展接口

1*PCIe x16 (Gen 3) ,1*PCIe x4 (Gen 2),2*PCI

显示

1*VGA:resolution up to 1920x1200 @ 60Hz

1*LVDS:dual channel, resolution up to 1920x1200 @ 60Hz

1*DVI-I (DVI-D signal) :resolution up to 1920x1200 @ 60Hz

1*DP++:resolution up to 4096x2160 @ 60Hz

音频

Realtek ALC888S-VD2-GR

温度

工作温度: 0 to 60°C,存储温度: -40 to 85°C

湿度

工作湿度: 5 to 90% RH,存储湿度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
