Part Number

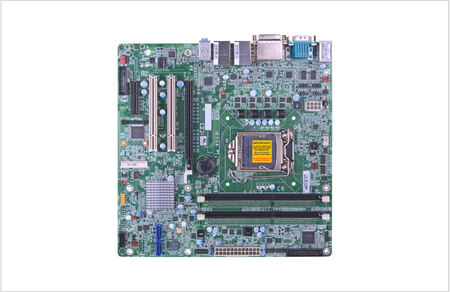

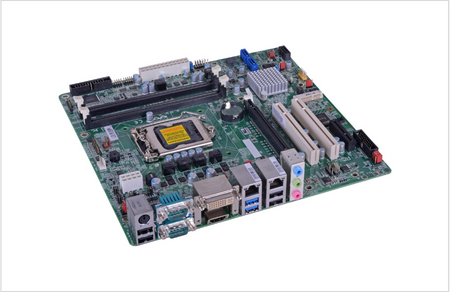

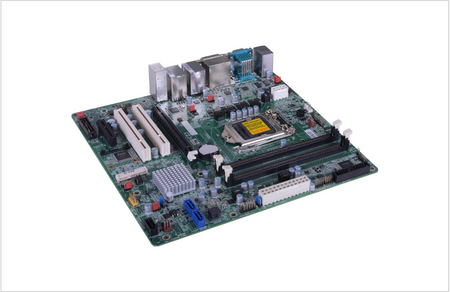

EB-330-H81

处理器

4th Generation Intel® Core™ processors,LGA 1150 socket

芯片组

Intel® H81 Chipset

内存

2*240-pin DIMM up to 16GB,Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

以太网络

1*Intel® I210 PCIe (10/100/1000Mbps),

1*Intel®I217LM(10/100/1000Mbps)

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

2*RS-232/422/485(RS232 and/or Power)(DB-9)

USB

2*USB 3.0/2.0/1.1, 4*USB 2.0/1.1

PS/2

1*PS/2

显示

1*DVI-I,1*HDMI

AUDIO

1*Line-out,1*Mic-in,1*Line-in

内部I/O接口

串行端口

4*RS-232 (2.0mm pitch)

USB

2*USB 2.0

音效

1*Audio (Line-out/Mic-in),1*S/PDIF

SATA

2*SATA 3.0 ,1*SATA 2.0

DIO

1*8-bit DIO

扩展接口

1*PCIe x16 (Gen 2),1*PCIe x4 (Gen 2), x1 signal),2* PCI,1*Mini PCIe

显示

1*HDMI:resolution up to 4096x2304 @ 24Hz,

1*DVI-I :resolution up to 1920x1200 @ 60Hz

音频

Realtek ALC886

温度

工作温度: 0 to 60°C,存储温度: -20 to 85°C

湿度

工作湿度: 5 to 90% RH,存储湿度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
