组件名称

规格

处理器

6/7th Generation Intel® Core™ processors,LGA 1151 socket

芯片组

Intel® H110 Chipset

系统内存

2*260-pin SODIMM up to 32GB, Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

网络

1*Intel® I211AT PCIe (10/100/1000Mbps) 1*Intel® I219V PCIe (10/100/1000Mbps)

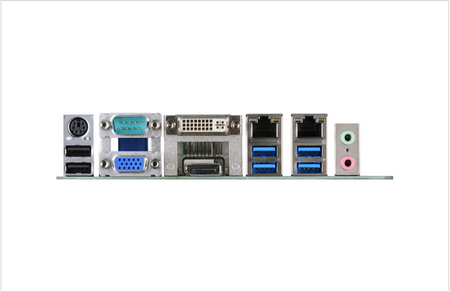

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

1*RS-232 (DB-9)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2 (mini-DIN-6)

显示

1*VGA,1*DVI-I (DVI-D signal),1*DP++

音源

1*Line-out,1*Mic-in,1*Line-in

内部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.00mm pitch) 2*RS-232 (2.00mm pitch)

USB

2*USB 2.0 (2.00mm pitch)

音效

1*S/PDIF

SATA

3*SATA 3.0 (up to 6Gb/s)

DIO

1*8-bit DIO

显示

1*LVDS LCD Panel Connector, 1*LCD/Inverter Power

扩展槽

1*PCIe x16 (Gen 3) , 1*Full-size Mini PCIe

显示

1*VGA:resolution up to 1920x1200 @ 60Hz 1*DVI-I (DVI-D signal):resolution up to 1920x1200 @ 60Hz 1*DP++:resolution up to 4096x2304 @ 60Hz 1*LVDS:dual channel,resolution up to 1920x1200 @ 60Hz

音频

Realtek ALC888S-VD2-GR

温度

工作温度: 0 to 60°C, 存储温度:-40 to 85°C

湿度

工作湿度:5 to 90% RH, 存储湿度:5 to 90% RH

尺寸

170mm (6.7")*170mm (6.7")
