组件名称

规格

处理器

6/7thGenerationIntel®Core™processors,LGA1151socket

芯片组

Intel®H110Chipset

系统内存

2*260-pinSODIMMupto32GB， DualChannelDDR41866/2133MHz

BIOS

InsydeSPI128Mbit

网络

1*Intel®I211ATPCIe(10/100/1000Mbps)1*Intel®I219VPCIe(10/100/1000Mbps)

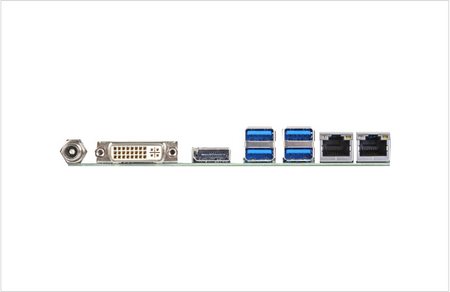

背部I/O接口

以太网络

2*GbE (RJ-45)

USB

4*USB 3.0

PS/2

1*PS/2

显示

1*DVI-I (DVI-D signal),1*HDMI*/DP (DP available upon request

内部I/O接口

串行端口

3*RS-232 (2.00mm pitch)1*RS-232/422/485 (RS-232 w/ power)(2.00mm pitch）

USB

4*USB 2.0 (2.00mm pitch)

内部I/O接口

显示

1*LVDS LCD Panel Connector,1*LCD/Inverter Power

音效

1*Audio (Line-out/Mic-in), 1*S/PDIF

SATA

2*SATA 3.0 (up to 6Gb/s)

DIO

1*8-bit DIO

扩展槽

1*PCIe x4 (Gen 2), 1*Half-size Mini PCIe (USB/PCIe), 1*Full-size mSATA (USB/SATA)

显示

1*DVI-I (DVI-D signal):resolution up to 1920x1200 @ 60Hz 1*LVDS:dual channel, resolution up to1920x1200 @ 60Hz 1*HDMI/DP(DP available upon request) HDMI: resolution up to 2560x1600 @60Hz or 4096x2160 @ 24Hz DP:resolution up to 4096x2304 @ 60Hz

音频

Realtek ALC888S-VD2-GR

温度

工作温度: -0 to 60°C, 存储温度:40 to 85°C

湿度

工作湿度:5 to 90% RH, 存储湿度:5 to 90% RH

尺寸

170mm (6.7")*170mm (6.7")
