组件名称

规格

处理器

4th Generation Intel® Core™ processors(22nm process technology), LGA 1150 socket

芯片组

Intel® H81 Express Chipset

系统内存

2*204-pin SODIMM up to 16GB,Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

网络

1*Intel® I210 PCI Express Gigabit Ethernet controller，1*Intel® I217 Gigabit Ethernet Phy Integrated 10/100/1000 transceiver，Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

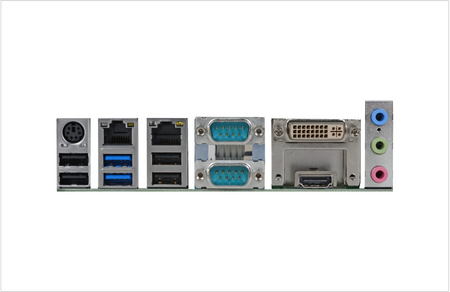

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

2*RS-232 (DB-9)

USB

2*USB 3.0, 4*USB 2.0

PS/2

1*PS/2(mini-DIN-6)

显示

1*DVI-I,1*HDMI

音源

1*Line-out,1*Mic-in,1*Line-in

内部I/O接口

显示

1*LVDS

USB

2*USB 2.0/1.1

音效

1*Line-out,1*Mic-in,1*S/PDIF

SATA

2*SATA 3.0（up to 6Gb/s)

DIO

1*8-bit DIO

扩展槽

1*PCIe x16 (Gen 3),1*Mini PCIe slot

显示

1*HDMI: resolution up to 4096x2304 @ 24Hzor 2560*1600@60Hz, 1*DVI-I: resolution up to 1920x1200 @ 60Hz, 1*LVDS: 24-bit,dual channel,resolution up to1920*1200@60Hz

音频

Realtek ALC886

温度

工作温度:0 to 60°C, 存储温度: 20 to 85°C

湿度

工作湿度:10% to 90% RH, 存储湿度:10% to 90% RH

尺寸

170mm (6.7")*170mm (6.7")
