组件名称

规格

CPU

6/7th Generation Intel® Core™ Processors,LGA 1151 socket

系统芯片组

Intel® H110/Q170 Chipset

系统内存

2*288-pin DIMM up to 32GB,Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

以太网络

Q170: 1*Intel® I219LM PHY, 1*Intel® I211AT PCIe(10/100/1000Mbps) (only Core i7/i5 support iAMT)

H110: 1*Intel® I219V PHY, 1*Intel® I211AT PCIe (10/100/1000Mbps)

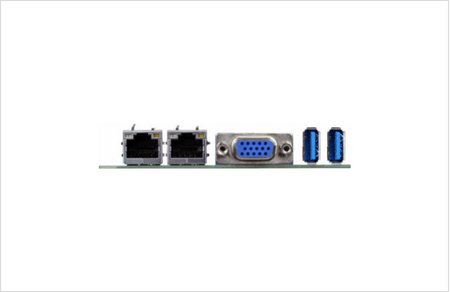

背部I/O接口

以太网络

2*GbE (RJ-45)

USB

2*USB 3.0

显示

1*DVI-D (available upon request), 1*VGA

内部I/O接口

串行端口

2*RS-232 (2.54mm pitch),2*RS-232/422/485 (2.54mm pitch)

USB

2*USB 3.0 (2.0mm pitch) (Q170 only)，6*USB 2.0 (2.54mm pitch) (Q170)，4*USB 2.0 (2.54mm pitch) (H110)

SATA

4*SATA 3.0 (up to 6Gb/s)

DIO

1*8-bit DIO

SMBus

1*SMBus

ATX

ATX 12V Power Connector and Expansion Goldfinger

显示

1*VGA:resolution up to 1920x1200 @ 60Hz

1*DVI-D (available upon request):resolution up to 1920x1200 @ 60Hz

温度

工作温度:0 to 60°C,存储温度: -40 to 85°C

工作湿度

工作湿度: 5 to 90% RH

尺寸

338mm (13.3")*126.39mm (4.98")
