Model Name

EB-636-Q370

Processor

8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:

9th Generation Intel® Xeon®/Core™ LGA 1151 Socket Processors:

Chipset

Intel® Q370/C246 Chipset

Memory

Dual Channel DDR4 2400/2666MHz

C246: Four 288-pin ECC/non-ECC DIMM up to 128GB (Core™ i5/i7 only support non-ECC)

Q370: Four 288-pin non-ECC DIMM up to 128GB

BIOS

SPI 128Mbit

Controller

Intel® HD Gen 9 Graphics

Feature

OpenGL 5.0, DirectX 12, OpenCL 2.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9

HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

Display

1 x VGA VGA: resolution up to 1920x1200 @ 60Hz

2 x DP++ DP++: resolution up to 4096x2160 @ 60Hz

Triple Displays

VGA + DP++ + DP++

Interface

1 PCIe x16 or 2 PCIex8 (Gen 3)

2 x PCIe x4 (Gen 3)

3 x PCIe x1 (Gen 3)

1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support)

1 x M.2 2230 E key (PCIe x2 NVMe, USB 2.0)

Audio Codec

Realtek ALC888

Controller

1 x Intel® I211AT PCIe (10/100/1000Mbps)

1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Xeon Core/ i7/i5 supports iAMT)

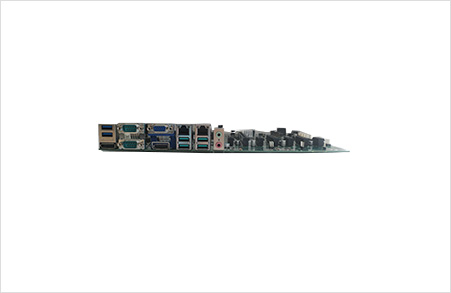

REAR I/O

2 x GbE (RJ-45)

2 x USB 3.1 Gen1 4 x USB 3.1 Gen2

1 x RS-232/422/485 (RS-232 w/ power) (DB-9) 1 x RS-232

1 x VGA 2 x DP++

1 x Line-out, 1 x Mic-in 1 x Line-in (opt.)

INTERNAL I/O

3 x RS-232 (2.54mm pitch) 1 x RS-232/422/485

2 x USB 3.1 Gen1 (Box header) 4 x USB 2.0 (2.54mm pitch) (4 x Pin Header)

1 x S/PDIF, 1 x Front Audio Header

4 x SATA 3.0 (2 for double stack connector; 2 for 7 pin SATA connectors with power)

RAID 0/1/5/10

1 x 8-bit DIO

1 x SMBus

WATCHDOG TIMER

System Reset, Programmable via Software from 1 to 255 Seconds

SECURITY

TPM 2.0 (opt., MOQ required)

POWER

8-pin ATX 12V power 24-pin ATX power

TBD

CR2032 Coin Cell

OS SUPPORT

Windows 10 IoT Enterprise 64-bit

Linux

Temperature

Operating: 0 to 60°C

Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

Humidity

Operating: 5 to 90% RH

Storage: 5 to 90% RH

Dimensions

305mm (12") x 244mm (9.6")

Height

PCB: TBD
