Part Number

EB-336C-B85

处理器

4th Generation Intel® Core™ processors,LGA 1150 socket

芯片组

Intel® B85 Chipset

内存

4*240-pin DIMM up to 32GB,Dual Channel DDR3 1066/1333/1600MHz

BIOS

64MbSPIFLASH

以太网络

2*Intel® I211 PCIe (10/100/1000Mbps)

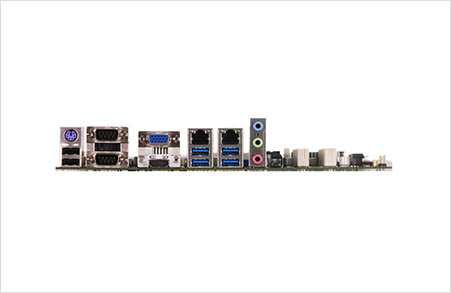

背部I/O接口

以太网络

2*GbE (RJ-45)

串口

2*DB-9（COM1 support 232/485/422,COM2 support 232/485)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2

显示

1*HDMI,1*VGA

AUDIO

1*Line-out,1*Mic-in,1*Line-in

背部I/O接口

串行端口

optional 4/6 COM, COM3-4 support RS232/485,COM5-6 support RS232

USB

6*USB 2.0

SATA

4*SATA3.0,1*mSATA

GPIO

1*2x5 Pin2.0mm GPIO

LPT

1*LPT

扩展接口

1*PCIe x16,1*PCIe x4,2* PCI

显示

1*HDMI：resolution up to 1920x1200 @ 60Hz

1*VGA(DB15):resolution up to 1920x1200 @ 60Hz

音频

Realtek ALC662

温度

工作温度: 0 to 60°C,存储温度: -20 to 85°C

湿度

工作湿度: 5 to 95% RH, 无凝露

尺寸

245mm (9.6")*245mm (9.6")
