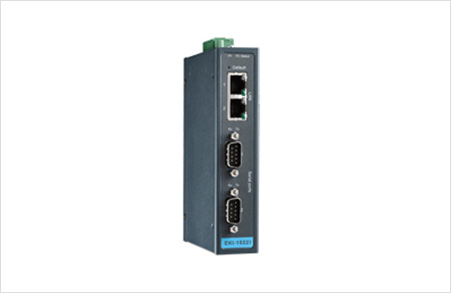

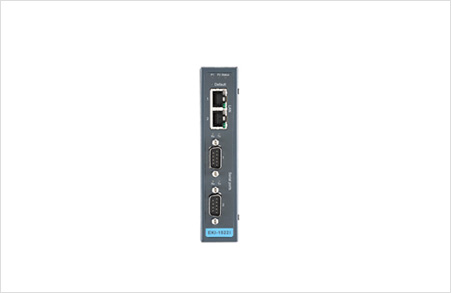

EKI-1522I
支持2个10/100 Mbps 自适应以太网端口
提供串口重发(虚拟串口),TCP和UDP操作模式
支持最大921.6kbps波特率
每串口最多支持5台主机同时访问
最多支持16台主机访问TCPClient模式
内建针对所有串行信号的15KV ESD保护
提供了丰富的配置方法,包括windows程序、telnet和web
支持32位/64位 Windows 2000/XP/Vista/7/8/8.1,Windows
server2003/2008,Windows CE 5.0及Linux
RS-485自动数据流控制
支持D.C. 电源端口突波保护,线对线 2 KV,线对地 4 KV;讯号端口 4 KV。
-40 ~ 70° C (-40 ~ 158°F) 宽范围工作溫度
规格

Part Number

EKI-1522I-CE

Certification

EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Environment

Operating Humidity (X)

10 ~ 95% RH

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

Port Connector Type

RJ45

Port Number

2

Transmission Speed

10/100BaseT(X), Auto-sensing

Mechanism

Dimensions (W x H x D)

36.6 x 140 x 95 mm (1.44" x 5.51" x 3.74")

Enclosure

Metal with solid mounting hardware

Mounting (X)

DIN-rail, Wall mount

Weight

480g

MTBF

Method

-

Time

-

Power Requirement (X)

Operating Current

0.7A @ 24V

Power Connector

Terminal block

Power Consumption

3.2W

Power Input

12 ~ 48 VDC, redundant dual inputs

Reverse Polarity

Present

Serial Communications (X)

Port Connector

DB9 male

Port Number

2

Port to Port Isolation

-

Protection

Built-in 15 KV ESD for all signals

Serial Type

RS-232/422/485

Transmission Speed

50~ 976.5 kbps

Warranty

Warranty Period

5 years
