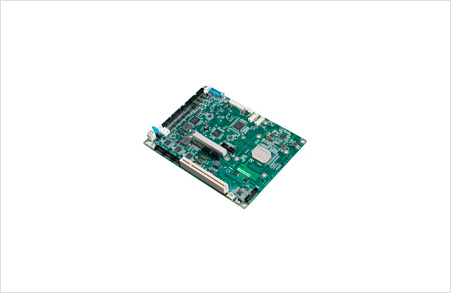

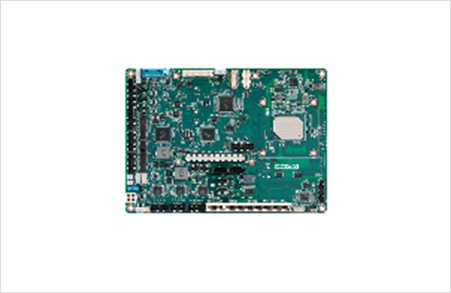

Part Number

PCM-9563NF-S1A1E

PCM-9563NF-S2A1E

PCM-9563N-S1A1E

Processor

CPU

Intel Celeron N3350

Intel Pentium N4200

Intel Celeron N3350

Core Number

2

4

2

Frequency

1.1 GHz

1.1 GHz

1.1 GHz

L2 Cache

2 MB

2 MB

2 MB

BIOS

AMI 64 Mbit

AMI 64 Mbit

AMI 64 Mbit

Memory

Technology

DDR3L 1867MHz

DDR3L 1867MHz

DDR3L 1867MHz

Max. Capacity

8 GB

8 GB

8 GB

Socket

1 x 204-pin SODIMM

1 x 204-pin SODIMM

1 x 204-pin SODIMM

Display

VRAM

Optimized Shared Memory Architecture up to 224 MB system memory

Optimized Shared Memory Architecture up to 224 MB system memory

Optimized Shared Memory Architecture up to 224 MB system memory

Graphic Engine

Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC

Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC

Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC

DP/HDMI

DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz)

DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz)

DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz)

eDP*

v1.4 (1920x1200@ 60Hz)

v1.4 (1920x1200@ 60Hz)

v1.4 (1920x1200@ 60Hz)

LVDS

Single channel 48-bit LVDS up to 1920 x 1200

Single channel 48-bit LVDS up to 1920 x 1200

Single channel 48-bit LVDS up to 1920 x 1200

VGA

Up to 1920 x 1200

Up to 1920 x 1200

Up to 1920 x 1200

Multiple Display

VGA+ LVDS/eDP*+ HDMI*/DP*

VGA+ LVDS/eDP*+ HDMI*/DP*

VGA+ LVDS/eDP*+ HDMI*/DP*

Ethernet

Interface

Up to 3 (the 3th GbE by request)

Up to 3 (the 3th GbE by request)

Up to 3 (the 3th GbE by request)

Controller

Intel i210

Intel i210

Intel i210

Connector

Box Header

Box Header

Box Header

Audio

Chipset

ALC888 HD Codec, Speaker out, CD-input, Line-in, Line-out, Mic-in

ALC888 HD Codec, Speaker out, CD-input, Line-in, Line-out, Mic-in

ALC888 HD Codec, Speaker out, CD-input, Line-in, Line-out, Mic-in

Amplifier

Max 2.2W/ch Stereo into a 3O Load

Max 2.2W/ch Stereo into a 3O Load

Max 2.2W/ch Stereo into a 3O Load

Watchdog Timer

Output

System reset

System reset

System reset

Interval

Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s)

Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s)

Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s)

Storage

mSATA

0

0

1 x full size mSATA

SATA

2 x SATAIII (Max. Data Transfer Rate up to 6.0 Gb/s)

2 x SATAIII (Max. Data Transfer Rate up to 6.0 Gb/s)

1 x SATAIII (max data transfer rate 6.0 Gb/s)

Floppy

1 (Optinal, shared with LPT)

1 (Optinal, shared with LPT)

1 (Optinal, shared with LPT)

Others

SPI Flash 64 Mbit

SPI Flash 64 Mbit

SPI Flash 64 Mbit

Internal I/O

HDMI

Support by request

Support by request

Support by request

DP

Support by request

Support by request

Support by request

LVDS

1 x 48bit LVDS

1 x 48bit LVDS

1 x 48bit LVDS

Serial

4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485

4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485

4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485

Ethernet

Up to 3 GbE (the 3th GbE by request)

Up to 3 GbE (the 3th GbE by request)

Up to 3 GbE (the 3th GbE by request)

PS/2 KB/Mouse

1

1

1

VGA

1

1

1

eDP

Support by request

Support by request

Support by request

Reset Button

1

1

1

USB

6 x USB2.0 + 2 x USB3.0

6 x USB2.0 + 2 x USB3.0

6 x USB2.0 + 2 x USB3.0

Parallel (LPT)

1

1

1

GPIO

16-bit GPIO

16-bit GPIO

16-bit GPIO

SMBus

1

1

1

I2C

1

1

1

Expansion

PCI-104

1

1

1

Mini PCIe

1 x full size Mini PCIe with SIM holder

1 x full size Mini PCIe with SIM holder

1 x full size Mini PCIe with SIM holder

PCI

1

1

1

mSATA

1

1

1

M.2

1 x E key

1 x E key

1 x E key

Power

Power Type

AT / ATX (Both AT/ATX can support ACPI)

AT / ATX (Both AT/ATX can support ACPI)

AT / ATX (Both AT/ATX can support ACPI)

Power Supply Voltage

ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only

ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only

ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only

Power Consumption (Typical)

0.48 @ 12V (5.76W)

0.44A @ 12V (5.28W)

0.48 @ 12V (5.76W)

Power Consumption (Max)

1.36 @ 12V (16.32W)

1.32 @ 12V (15.84W)

1.36 @ 12V (16.32W)

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

203 x 146 mm (8" x 5.75")

203 x 146 mm (8" x 5.75")

203 x 146 mm (8" x 5.75")

Weight

0.7 kg (1.54 lb) (with heatsink)

0.7 kg (1.54 lb) (with heatsink)

0.7 kg (1.54 lb) (with heatsink)

Total Height

29mm

29mm

29mm
