Spec Item

Description

Form factor

SBC Form Factor

CPU:

Intel® Celeron® 3855U (1.6GHz, TDP=15W)

Chipset:

SoC

System Memory:

1 x 260-pin DDR4 SO-DIMM

1 x on-board DDR4 4GB pre-installed (system max: 32GB)

Power:

Input: 3-pin terminal block: 9 ~ 36 V DC

Consumption: 12V@2A

Reliability:

Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis

Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)

Safety/EMC: CE/FCC

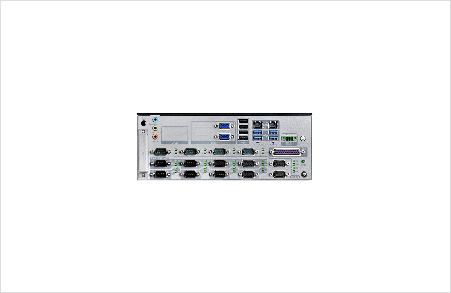

I/O Interface

I/O Ports

4 x USB 3.0

4 x USB 2.0

Ethernet:2 x RJ-45

PCIe GbE by Intel® I211 controller

COM Port:

6 x RS-232 (DB-9)

8 x RS-232/422/485 ports with automatic flow control (DB-9)

1 x 24-bit digital I/O (12-bit input/12-bit output)

Audio:

1 x Mic in, 1 x Speaker out, 1 x Line out

Display:2 x VGA

Expansion Slots

Expansion Slots

M.2:

1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2)

PCIe Mini:

2 x Full-size PCIe mini slot (PCIe by1, USB2.0)

System

Cooling method / System Fan

Fanless

Drive Bays

2 x 2.5＂ SATA 6Gb/s HDD/SSD Bay

Indicator&Buttons

Buttons

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

Indicators

HDD, Power, COM ports

Physical Characteristics

Construction

Extruded aluminum alloy

Color

Color

Black C + Silver

Dimensions

Dimensions

260 x 200 x100 (WxDxH) (mm)

Weight

Weight

4.4 kg/6.5 kg

Environment

Operating Temperature

-30°C ~ 70°C with air flow (SSD)

Humidity

10% ~ 95%, non-condensing
