Spec Item

Description

Form factor

SBC Form Factor

CPU:

Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)

Chipset:

SoC

System Memory:

1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)

(DRPC-130-AL-E1/4GB SKU is pre-installed with 4 GB memory)

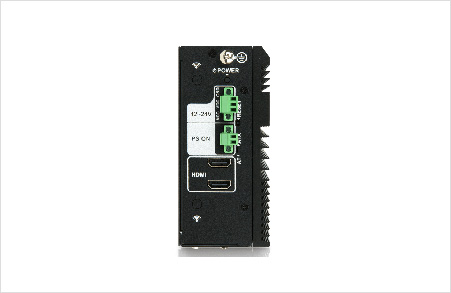

Power:

Input : 3-pin terminal block: 12 V ~ 24 V DC

Consumption: 12V @ 2.88 A (Intel® Atom™ x5-E3930 CPU with 4GB 1600 MHz DDR3L memory)

Remote Power: PSON 2-pin terminal block

Reliability:

Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27

Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)

Safety/EMC - CE/FCC

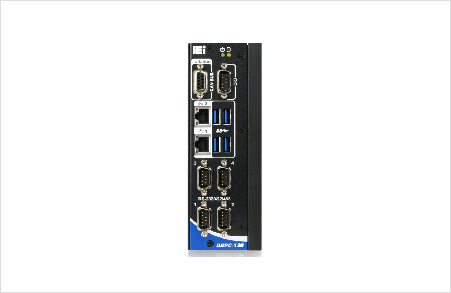

I/O Interface

I/O Ports

USB:4 x USB 3.0

Ethernet:2 x RJ-45 (PCIe GbE by Intel® I211 controller)

COM Port:4 x RS-232/422/485

Digital I/O:8-bit digital I/O , 4-bit input / 4-bit

CAN-Bus:1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus

Display:2 x HDMI 1.4b

Expansion Slots

Expansion Slots

PCIe Mini:

1 x Half-size PCIe Mini slot

1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

System

Cooling method / System Fan

Fanless

Drive Bays

1 x 2.5' SATA 6Gb/s HDD/SSD bay

Indicator&Buttons

Buttons

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

Indicators

1 x LED for HDD (Yellow)

1 x LED for Power (Green)

Physical Characteristics

Construction

Extruded aluminum alloy

Color

Color

Black

Dimensions

Dimensions

58.75 x 130 x 174

Weight

Weight

1.4Kg/2.5Kg

Environment

Operating Temperature

-20°C ~ 60°C with air flow (SSD)

Humidity

10% ~ 95%, non-condensing
