Spec Item

Description

Form factor

SBC Form Factor

CPU:Intel® Celeron® J1900 processor

(2 GHz, quad-core, 2 MB cache, TDP=10W)

Chipset:SoC

System Memory:

1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)

I/O Interface

I/O Ports

1 x USB 3.0

3 x USB 2.0

Ethernet:

LAN 1: PCIe GbE by Intel® I210 controller

LAN 2: PCIe GbE by Intel® I211 controller

COM Port:

3 x RS-232

1 x RS-422/485

Digital I/O:8-bit digital I/O

Display:1 x VGA

Resolution:VGA: Up to 2560x1600@60Hz

Audio:1 x Line out

Wireless:1 x 802.11b/g/n (optional)

Expansion Slots

Expansion Slots

1 x Full-size PCIe Mini card slot (supports mSATA)

1 x Half-size PCIe Mini card (only for iRIS)

System

Cooling method / System Fan

Fanless

Drive Bays

1 x 2.5” SATA 3Gb/s HDD bay

Color

Color

Black

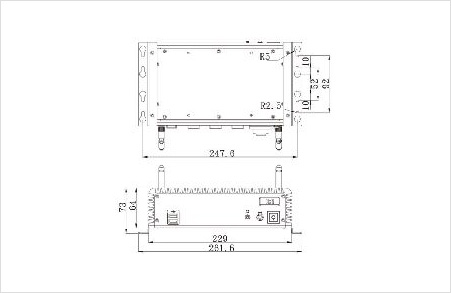

Dimensions

Dimensions

229 x 64 x 132

Weight

Weight

2.1 kg / 3.9 kg

Environment

Operating Temperature

-20°C~60°C with air flow (SSD)

Humidity

10% ~ 95%, non-condensing
