规格

描述

通信

蓝牙

V4.2 (M.2 2230 A-E key module)

Wi-Fi

IEEE 802.11 a/b/g/n/ac 2T2R module

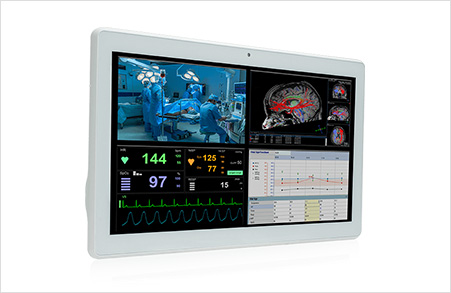

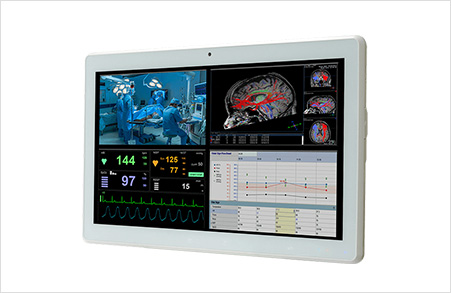

显示

背光 MTBF(hrs)

30000

亮度(cd/m2)

250

对比度

1000:1

LCD 尺寸

24＂

最大分辨率

1920x1080

运行环境

湿度

10% to 90% (non-condensing)

IP 等级

Front: IP65, Back: IP32

操作温度

0°C~40°C

存储温度

-20°C~60°C

I/O 接口

音频

2 x 3W Speaker

扩展

1 x Full-size/half-size PCIe Mini (PCIe+USB)

I/O 端口和交换机

2 x USB 2.0 (side)

4 x USB 3.0 port

2 x HDMI output

2 x GbE LAN port

2 x RS-232/422/485

1 x Audio out (side) + 1 x Mic in (side)

1 x Digital Mic

1 x DC jack

RAM

1 x 4GB, 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB)

其它特征

相机

5-megapixel CMOS front-facing camera with auto-focus and digital microphone

麦克风

digital microphone

系统散热

Fanless

物理特性

颜色

White

前面板结构

ABS+PC plastic with anti-bacterial material

尺寸 (LxWxH) (mm)

594.6 x 379.6 x 71 mm

安装

Wall, Stand and Arm VESA 100/75

电源

电源适配器

150W medical power adapter

电源

3 slots for hot swappable battery pack

系统

散热方式 / 系统风扇

Fanless

CPU

6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U

存储

1 x 2.5＂ accessible SATA HDD bay

2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID

触摸

触摸屏

Projected capacitive type with 10-point multi-touch

重量

重量

8.18 kg without batteries

9.53 kg with 3 batteries

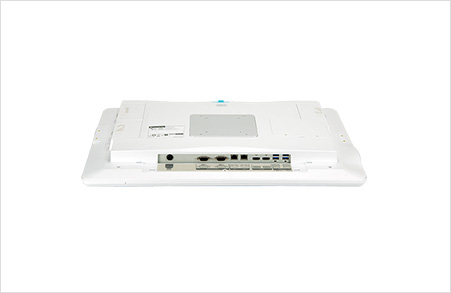

I/O 接口

I/O 接口

1 x AT/ATX Switch

2 x HDMI

2 x LAN(GbE)

1 x Line out

1 x Mic

1 x Power In(19V DC jack)

2 x RS-232

2 x Speaker

2 x USB 2.0

4 x USB 3.0

LED 功能

LED 功能

1 x RFID indicator

3 x Battery indicator (Color : Blue/Red)

1 x Power Indicator

OSD 功能

OSD 功能

1 x Brightness up

1 x Brightness down

1 x Volume up

1 x Volume down

1 x Touch lock & LCD on/off

1 x Task Manager & Power on/off
