Spec Item

Description

Communication

Bluetooth

Bluetooth V4.1

Wi-Fi

802.11 a/b/g/n/ac

Display

Brightness(cd/m2)

250 cd/m2 (typ.)

Contrast Ratio

800:1(typ.)

LCD Size

10.1”

Max Resolution

800(RGB) x 1280

Environment

Humidity

10% ~ 95%, non-condensing

Operating Temperature

-10°C ~ 50°C with air flow

Safety & EMC

CE/FCC Class B

Storage Temperature

-20°C ~ 60°C

Form factor

Form factor

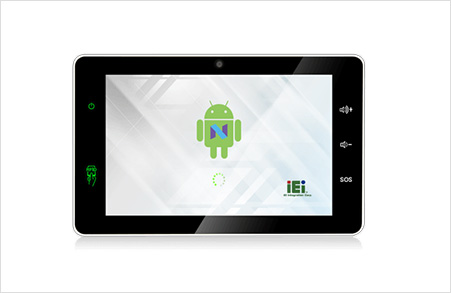

10.1” 1280x800 LCD

Project Capacitive Touch Screen

CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)

OS: Android 7.1

Boot Flash: 16GB eMMC Nand Flash

RAM: 2GB LPDDR3-1866

Grove Interface IOT Sensor connectors

Function Key

Function Key

1 x Reset button

2 x Volume key ( up / down) on screen

1 x SOS key on screen

I/O Interface

Ethernet

1 x GbE RJ45 by RTL8211E with PoE (PD)

1 x GbE RJ45 by RTL8211E

I/O Ports

1 x RS-232 (4 pin terminal block)

1 x RS-232/422/485 (4 pin wafer connector)

1 x 4 bit (2 in, 2 out)

2 x 2 bit (1 in, 1 out)

3 x I²C sensor connectors (3V)

USB

1 x USB 3.0 Type A

1 x USB 2.0 Type A

Other Features

Audio

2 x Speaker (1.5W)

Camera

Front 5-megapixel (CMOS)

Microphone

1 x Digital Mic in

RFID Reader

13.56 MHz ISO4443 A/B, read-write capable, ISO 14443A (MIFARE), ISO 14443B (FeliCa)

Physical Characteristics

Color

White

Dimensions (LxWxH) (mm)

282.5 x 174.3 x 26.8

Mounting

Panel mount, In wall cage

Net Weight

0.85 kg

Power

Input

9 V~30 V DC input (φ2.5/5.5mm DC Jack)

Storage

Storage

1 x Micro SD slot

System

Chipset

SoC

Cooling method / System Fan

Fanless

CPU

Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)

On-board Memory

2GB LPDDR3-1866

Storage

16GB eMMC NAND FLASH

Touch

Touch Screen

10 points Project Capacitive

LED Function

LED Function

1 x Power LED 1 x RFID LED
