Spec Item

Description

System

CPU

Intel® Core™ i5 and Celeron® ULT Processor

Storage

1 x 2.5” SATA 3Gb/s HDD bay

1 x M.2 M key PCIe storage (2280 or 22110)

1 x mSATA slot

Communication

Bluetooth

v4.0 (M.2 slot)

Wi-Fi

IEEE 802.11a/b/g/n/ac

I/O Interface

Ethernet

2 x Intel® I211-AT PCIe GbE controller

Audio

AMP 3W + 3W (internal speaker)

Audio Codec

ALC892

RAM

Two 260-pin DDR4 SO-DIMMs (system max.32GB)

I/O Ports and Switches

1 x RS-232 by DB-9 (RI/5V/12V)

1 x RS-232/422/485 by DB-9 (RI/5V/12V)

2 x GbE LAN

4 x USB 3.0

1 x HDMI output

1 x Power switch

1 x Reset button

1 x AT/ATX switch

1 x 9-30V lockable power jack

Environment

Operating Temperature

-20°C~50°C

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C~60°C

IP Level

IP 64 compliant front panel

Physical Characteristics

Color

Black C

Mounting

Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm

Dimensions (LxWxH) (mm)

528 x 336 x 68

Construction Front Panel

PC + ABS Plastic

Weight

Weight

8.27/11.27

LCD

Size

21.5""

Resolution

1920 x 1080

Brightness (cd/m2)

250

Contrast Ratio

1000:1

LCD Color

16.7M

Pixel Pitch (mm)

248.25 (H) × 248.25 (V)

Viewing Angle (H-V)

170°(H) / 160°(V)

Backlight MTBF

30,000 (LED backlight panel)

Touch

Touch Screen

Projected capacitive type with USB interface

Touch Controller

EETI EXC3180

Other Features

Camera

2-megapixel with low light function

OSD Function

Software OSD

Microphone

digital microphone

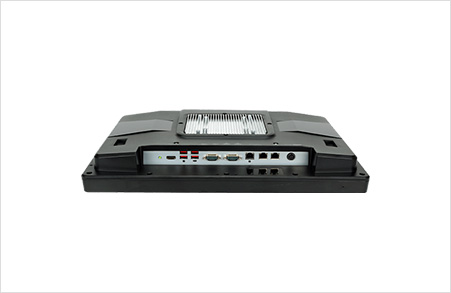

I/O Interface

I/O Interface

1 x RS-422/485(DB-9 (RI/5V/12V))

4 x USB 3.0

1 x Power In(DC jack)

2 x LAN(GbE)

1 x Reset Button

1 x Power Switch

1 x AT/ATX switch

1 x RS-232(DB-9 (RI/5V/12V))

1 x HDMI
