Spec Item

Description

Communication

Bluetooth

Bluetooth V4.0

Wireless

IEEE 802.11a/b/g/n/ac

Environment

Humidity

10% to 95% (non-condensing)

Operating Temperature

-20°C ~ 50°C

Storage Temperature

-20°C~60°C

I/O Interface

Audio

AMP 3W + 3W (internal speaker)

Audio Codec

ALC892

Ethernet

2x PCIe GbE by Intel® i211 controller

RAM

One 260-pin 2133MHz single-channel, 4GB DDR4L SO-DIMM pre-installed (system max. 8GB)

LCD

Backlight MTBF

50000 (LED backlight)

Brightness (cd/m2)

500

Contrast Ratio

700:1

LCD Color

16.2M

Pixel Pitch (mm)

0.240 (H) x 0.240 (V)

Resolution

1024 x 768 (4:3)

Size

12.1""

Viewing Angle (H-V)

160º / 160º

Other Features

Camera

2-megapixel with low light function

Microphone

digital microphone

Power

Power consumption

12V@6A

System

CPU

6th Generation Intel® Core™ i5 and Celeron® on-board processor

Storage

2.5” SATA 3Gb/s HDD bay M.2 M key PCIe (2230) mSATA slot (PCIe/mSATA/USB)

Touch

Touch Controller

EETI EXC3180

Touch Screen

Projected capacitive type with USB interface (anti-UV)

Weight

Weight

3/5.03

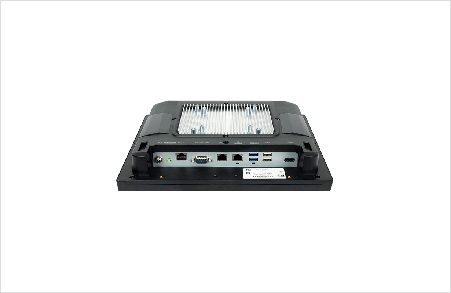

I/O Interface

I/O Interface

1 x AT/ATX switch

1 x HDMI

2 x LAN(GbE)

1 x Power In

1 x Power Switch

1 x Reset Button

1 x RS-232(DB-9 (RI/5V/12V))

1 x RS-422/485(DB-9 (RI/5V/12V))

2 x USB 2.0

2 x USB 3.0
