Spec Item

Description

Display

Backlight MTBF(hrs)

50000

Brightness(cd/m2)

350

Contrast Ratio

33.3340277778

LCD Size

17""(5:4)

Max Resolution

1280 (W) x 1024 (H)

Environment

Humidity

10% to 95% (non-condensing)

IP Level

IP 65 compliant front panel

Operating Temperature

-10°C~50°C (14°F~122°F)

Storage Temperature

-20°C~60°C (-4°F~140°F)

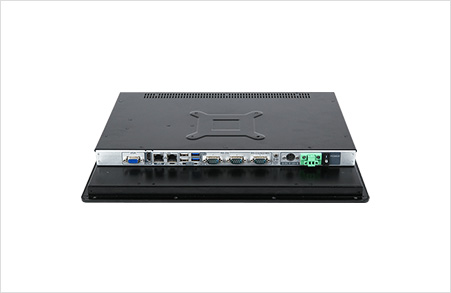

I/O Interface

I/O Ports and Switches

2 x RJ-45 LAN Port

2 x USB 3.0

2 x USB 2.0

1 x HDMI output

2 x RS-232

1 x RS-232/RS-422/485

1 x VGA

1 x 9 V~36 V DC jack (4-pin)

1 x 9 V~36 V DC terminal block

1 x Line-out (PPC-F15B and PPC-17B only)

1 x Power switch

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.26 x 0.26

Viewing Angle (H-V)

170° / 160°

Physical Characteristics

Cutout Dimensions

323 x 390

Dimensions (LxWxH) (mm)

341.4 x 408.4 x 51.8

Power

Power adapter

9V~36V DC

Touch

Touch Controller

5-wire resistive single-touch type flat touchscreen 3H

Touch Screen

2-point projected capacitive type touchscreen 6H

Weight

Weight

5 kg
