Spec Item

Description

Form factor

SBC Form Factor

CPU: Intel® Atom™ x7-E3950 Processor (quad-core 2.0GHz, 12W TDP)

Chipset: SoC

System Memory: 1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed

Communication

WLAN: PCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)

Bluetooth: BT 4.0/3.0+HS (combo with WLAN optional module)

WWAN: PCIe Mini WCDMA/HSDPA/HSUPA (optional)

GPS: On board GPS

Safety/EMC: CE/FCC/E-Mark/IP rating : IP 4X compliant

Supported OS: Microsoft® Windows 10 IoT Enterprise

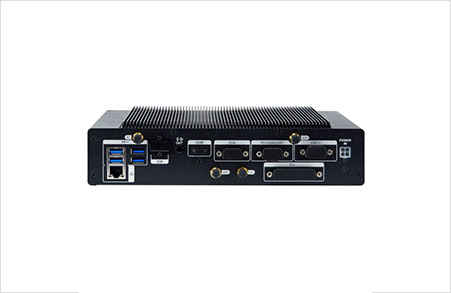

I/O Interface

I/O Ports

4 x USB 3.0

1 x RJ-45 PCIe GbE by Intel® I211

1 x RS-232/422/485 (BIOS configuration)

1 x 16-bit digital I/O (8-bit input / 8-bit output)

1 x DB9 OBD-II/J1939

2 x Display -

>> 1 x VGA (Up to 1920 x 1200 @ 60 Hz)

>> 1 x HDMI (Up to 3840 x 2160 @ 30 Hz)

1 x Audio line out

2 x on board SIM card slot

Expansion Slots

Expansion Slots

1 x Full/Half-size PCIe Mini slot (reserved for WWAN)

1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window)

1 x Half-size PCIe Mini slot (reserved for WLAN)

System

Cooling method / System Fan

Fanless

Drive Bays

Hard Drive: 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay

mSATA / eMMC:

1 x mSATA (PCIe Mini Slot)

1 x eMMC 5.0 (reserved)

Physical Characteristics

Construction

Extruded aluminum alloy  Mounting Wall mount / VESA 100

Color

Color

Black

Dimensions

Dimensions

261 x 170 x 60 (WxHxD) (mm)

Weight

Weight

2.4 kg / 3.8 kg (Net/Gross)

Environment

Operating Temperature

Operating: -30°C ~ +70°C with air flow Storage: -40°C ~ 80°C

Humidity

10% ~ 95%, non-condensing
