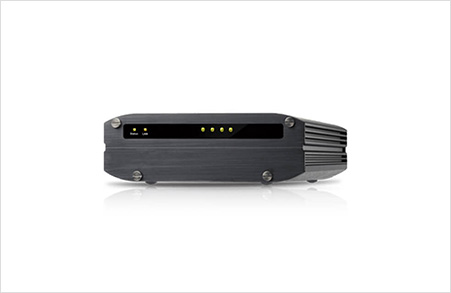

IBX-660
Four 2.5" removable drive bays, and maximum storage capacity support up to 8TB
32GB eMMC (storage & boot)
Rugged design with high resistance to vibration and impact
Dust-resistant and fanless design
Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)
规格

Spec Item

Description

Form factor

SBC Form Factor

*CPU: Intel® Atom™ E3845 quad-core 1.91GHz

*Chipset: SoC

*Memory:

2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB)

eMMC 32GB(storage and boot)

*Power:

Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V

Input 2: 4-pin terminal block, 9-36V DC

Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD)

*Safety / EMC: CE/FCC

*Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux

I/O Interface

I/O Ports

2 x USB 3.0

2 x USB 2.0

2 x RJ-45 PCIe GbE by Intel® I210

1 x HDMI Display port (Resolution: up to 1080p support)

1 x Mic-in

1 x Audio out

Expansion Slots

Expansion Slots

1 x Full-size PCIe Mini slot

1 x onboard SIM card slot

System

Cooling method / System Fan

Fanless

Drive Bays

4 x 2.5"" SATA HDD/SSD, removable drive bay

Indicator&Buttons

Indicators

LED Indicators: Status, LAN, HDD 1-4

Physical Characteristics

Construction

Wall-mount, DIN-rail mount

Color

Color

Black

Dimensions

Dimensions

180 x 247 x 59 mm ( WxDxH )

Weight

Weight

1.11 kg/3.2 kg ( Net/Gross )

Environment

Operating Temperature

-40°C ~ 50°C
