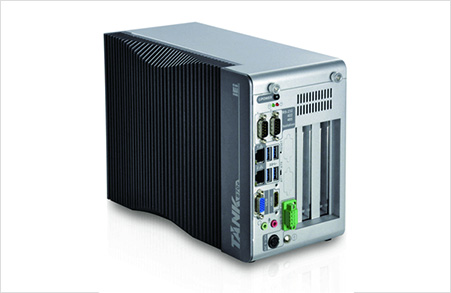

Spec Item

Description

Form factor

SBC Form Factor

CPU:

Intel 7th Gen Core CPU &

Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)

Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)

Chipset: Intel® H110

System Memory:

2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)

Power:

Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC

Consumption: 19 V@3.44 A (Intel® Core™ i7-6700TE with 8 GB memory)

Internal Connector: 5V@3A or 12V@3A

Reliability:

Operating Shock - Half-sine wave shock 5G, 11ms, 100 shocks per axis

Non-Operating Shock - Half-sine wave shock 15G, 11ms, 100 shocks per axis

Operating Vibration - MIL-STD-810G 514.6C-1 (with SSD)

Non-Operation Vibration - Half-sind mode IEC-60068-2-06

Safety/EMC - CE/FCC

I/O Interface

I/O Ports

USB: 4 x USB 3.0

Ethernet:

2 x RJ-45 PCIe GbE by RTL8111G controller

COM Port:

2 x RS-232/422/485 (DB-9, w/ 2.5kV isolation protection)

Display:

1 x VGA (Up to 1920 x 1200@60Hz)

1 x HDMI 1.4 (up to 3840x2160@30Hz)

Audio: 1 x Line-out, 1 x Mic-in

Expansion Slots

Expansion Slots

PCIe Mini:

1 x Full-size PCIe Mini slot

1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

Backplane:

3A: 1 x PCIe x16, 2 x PCI

3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI

3C: 3 x PCI

System

Cooling method / System Fan

Fanless

Drive Bays

1 x 2.5＂ SATA 6Gb/s HDD/SSD bay

Indicator&Buttons

Buttons

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

Physical Characteristics

Construction

Extruded aluminum alloys

Color

Color

Dark silver purple + Silver

Dimensions

Dimensions

132.6 x 255.2 x 190 (WxDxH) (mm)

Weight

Weight

4.2 kg/6.3 kg

Environment

Operating Temperature

i7-6700TE -20°C ~ 50°C with air flow (SSD)

i5-6500TE -20°C ~ 60°C with air flow (SSD)

Humidity

10% ~ 95%, non-condensing
