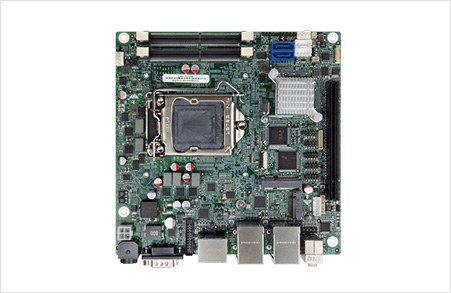

Spec Item

Description

BIOS

BIOS

UEFI BIOS

Dimensions

Dimensions

170mm x 170mm

Display

Display Output

Dual independent display

1 x HDMI (up to 3840x2160@60Hz)

1 x DP++ (up to 3840x2160@60Hz)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C~60°C

Storage Temperature

-30°C ~ 70°C

Expansion Slots

Expansion Slots

1 x PCIe x16

1 x M.2 M key (2280, Gen2 PCIe x2 only)

1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

I/O Interface

Audio

Realtek ALC662 HD codec supports 5.1-channel 2 x Audio jacks (line-out, mic-in) on rear IO 1 x Front audio (2x5 pin)

Digital I/O

8-bit Digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I219LM PCIe controller

LAN2: Intel® I211 PCIe controller

Expansion

1 x Full-size PCIe Mini card slot (PCIe & USB)

1 x M.2 B Key (SATA)

1 x PCIe x16 slot (Gen2)

I/O Interface

I/O Interface

1 x Front panel(1x10 pin, Power LED, HDD LED, Power Button, Reset Button)

1 x I²C(1x4 pin)

2 x Internal RS-232(2x5 pin, P=2.0)

1 x KB/MS(1x6 pin)

2 x LAN LED(1x2 pin)

1 x RS-232/422/485

2 x SATA 6Gb/s(support Hot plug)

1 x SMBus(1x4 pin)

4 x USB 2.0(2x4 pin, P=2.0)

4 x USB 3.0

Power

Power consumption

12V@12.16A (3.4GHz Intel® Core i7-6700 with two 2133MHz 16GB DDR4 memory)

Power Supply

9 ~ 28V DC input Support ATX/AT mod

1 x External DC Jack (4-pin DIN) 1 x Internal power connector (2x2 pin)e

System

Chipset

Intel® H110

CPU

LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor

Graphcis Controller

Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0

Memory Max.

Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

Watchdog Timer

Watchdog Timer

Software programmable support 1~255 sec. system reset

Weight

Weight

GW:900g / NW:400g
