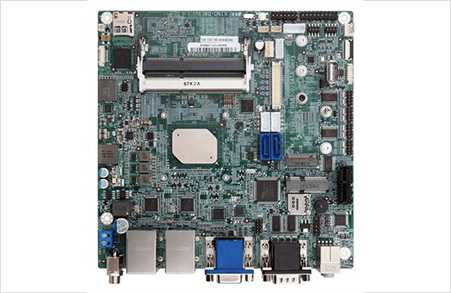

Spec Item

Description

Dimensions

Dimensions

170mm x 170mm

Display

Display Output

Triple independent display

1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)

1 x VGA (up to 1920x1200@60Hz)

1 x HDMI (up to 3840x2160@30Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20ºC ~ 70ºC

Storage Temperature

-30°C ~ 80°C

Expansion Slots

Expansion Slots

1 x PCIe x1 slot

1 x M.2 B Key (SATA & USB 2.0 signal)

1 x Full-size PCIe Mini card slot

Form factor

Form factor

Mini-ITX

I/O Interface

Audio

Realtek ALC662 HD Audio Codec supports 5.1 channel 2 x Audio jacks (line-out, mic-in) on rear IO 1 x Front Audio (2x5 pin)

Digital I/O

8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I211AT PCIe controller

LAN2: Intel® I211AT PCIe controller

I/O Interface

I/O Interface

1 x Front panel(2x7 pin, power LED, HDD LED, speaker, power button, reset button)

1 x I²C(1x4 pin)

4 x Internal RS-232(2x5 pin, P=2.0)

1 x Internal USB 2.0(180⁰ Type-A)

4 x Internal USB 2.0(2x4 pin, P=2.0)

1 x KB/MS(1x6 pin)

2 x LAN LED(1x2 pin)

2 x RS-232/422/485

2 x SATA 6Gb/s

1 x SMBus(1x4 pin)

4 x USB 3.0

Power

Power consumption

12V@3.64A (Intel® Pentium® N4200 CPU with two 8GB 1600MHz DDR3L memory)

Power Supply

12V only DC input as Default/ 9V~30V DC input (optional)

1 x Internal power connector (2x2 pin)

1 x External DC power Jackc (Ø5.5mm)

System

CPU

Intel® Atom™ x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)

Intel® Atom™ x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)

Intel® Atom™ x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)

Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)

Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)

Memory Max.

Two 204-pin 1866/1600MHz Dual-channel DDR3L SO-DIMMs support up to 8GB

Weight

Weight

GW:1100g, NW: 700g
