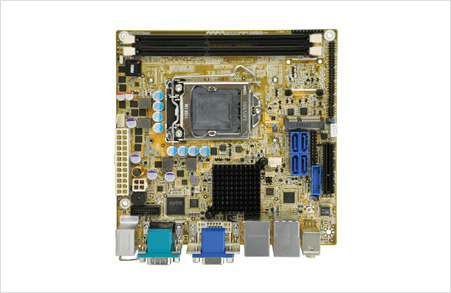

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1150SA-R10

CF-1150SB-R11

CF-1150SC-R20

CF-1150SE-R10

Display

Display

DVI-D integrated in the CPU

VGA integrated in Intel® Q87

DisplayPort integrated in the CPU (pin header for changing to HDMI, LVDS, VGA)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x PCIe x4

1 x PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

I/O Interface

Audio

Realtek ALC662 HD Audio codec (line-out, mic-in)

Digital I/O

8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I211 PCIe controller

LAN2: Intel® I217LM with Intel® AMT 9.0 support

I/O Interface

I/O Interface

3 x Internal RS-232

2 x USB 3.0

2 x USB 2.0

2 x RS-232

1 x Internal RS-422/485

4 x Internal USB 2.0

2 x Internal USB 3.0

Power

Power consumption

3.3V@1.11A, 5V@3.01A, 12V@0.12A, Vcore@6.32A, 5VSB@0.15A (Intel® 2.60GHz CPU with two 1600 MHz 2 GB DDR3 memory)

System

Chipset

Intel® Q87

CPU

Intel® Core™ i7/i5/i3 processor

CPU Socket

LGA1150

Memory Max.

Two 240-pin 1066/1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported (system max. 16 GB)

Storage

4 x SATA 6Gb/s (RAID 0/1/5/10)

Watchdog Timer

Watchdog Timer

Software programmable supports 1~255 sec. system reset
