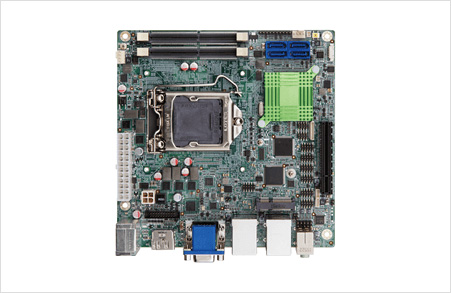

Spec Item

Description

Dimensions

Dimensions

170mm x 170 mm

Display

Display Output

Triple independent displays

1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)

1 x HDMI/DP (up to 3840x2160@60Hz)

1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x Full-size PCIe Mini slot (support mSATA)

1 x PCIe x8 slot

I/O Interface

Audio

Realtek ALC662 HD Audio codec

2 x Audio jacks (line-out, mic-in) on rear IO

1 x Front audio (2x5-pin)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I219LM with (Intel® AMT 11.0 support)

LAN2: Intel® I211 PCIe controller with NCSI support

I/O Interface

I/O Interface

2 x RS-422/485((1 x 4 pin, P=2.0, colay with COM4))

1 x I²C((1 x 4 pin))

4 x Internal RS-232((2 x 5pin,P=2.0))

4 x Internal USB 2.0((2 x 4pin,P=2.0))

4 x SATA 6Gb/s((RAID 0/1/5/10 support))

1 x SMBus((1 x 4 pin))

SMBus((1 x 4 pin))

Power

Power consumption

3.3V@1.62A, 5V@3.54A, 12V@8.17A, 5VSB@3.6A

(Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory)

Power Supply

ATX/AT Power Supply

System

Chipset

Intel® Q170

CPU

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

Memory Max.

Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)

Weight

Weight

GW:900g, NW: 450g
