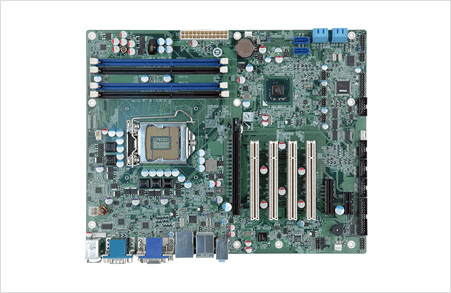

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/ CF-1156D-RS/ CF-1156E-R11

Display

Display

Dual display supported 1 x VGA 1 x HDMI 1 x DVI-D

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-10°C ~ 60°C (14°F ~ 140°F)

Expansion Slots

Expansion Slots

1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

4 x PCI

I/O Interface

Audio

Realtek ALC662 HD Audio codec

Digital I/O

8-bit digital I/O (4-bit input/4-bit output)

Ethernet

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579 PHY with Intel® AMT 7.0 support

I/O Interface

I/O Interface

5 x RS-232

1 x RS-422/485

2 x USB 3.0

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I²C

1 x PS/2 KB & MS

1 x TPM connector (2x10 pin)

I/O Interface

8x Internal USB 2.0

1 x Internal RS-422/485

4 x Internal RS-232

1 x I²C

2 x USB 3.0

2 x USB 2.0

1 x SMBus

1 x RS-422/485

1 x LPT

1 x RS-232

Option

iRIS

N/A

Power

Power consumption

3.3V@1.65A, 5V@6.31A , 12V@0.18A, Vcore@7.88A, 5VSb@0.15A (Intel® Core™ i5-2400 3.10GHz CPU with 1333MHz DDR3 4GB x 4 memory)

System

Chipset

Intel® Q67

CPU

Intel® Core™ i7/i5/i3, PentiumR Dual, Celeron® processor

CPU Socket

LGA1155

Memory Max.

4x240-pin 1333/1066MHz dual-channel DDR3 SDRAM unbuffered DIMM (system max. 32GB)

Storage

2 x SATA 6Gb/s

4 x SATA 3Gb/s

Watchdog Timer

Watchdog Timer

Software programmable and supports 1~255 sec. system reset
