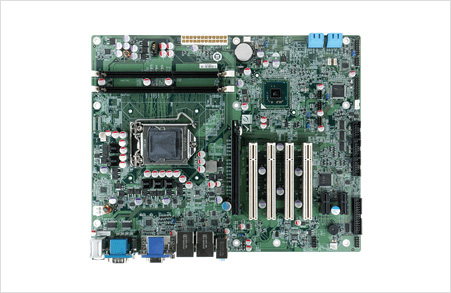

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/ CF-1156D-RS/ CF-1156E-R11

Display

Display

Dual display supported

1 x VGA

1 x DVI-D

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-10°C ~ 60°C (14°F ~ 140°F)

Expansion Slots

Expansion Slots

1 x PCIe x16

2 x PCIe x1

4 x PCI

FSB

FSB

N/A

I/O Interface

Audio

Realtek ALC662 HD Audio Codec

Digital I/O

8-bit digital I/O (4-bit input/4-bit output)

Ethernet

LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

LAN2: Realtek RTL8111E PCIe GbE controller

I/O Interface

5 x RS-232

1 x RS-422/485

10 x USB 2.0

1 x LPT

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I²C

1 x PS/2 KB/MS

1 x TPM connector (2x10 pin)

I/O Interface

I/O Interface

1 x LPT

2 x RS-232

1 x RS-422/485

1 x SMBus

2 x LAN LED

1 x KB/MS

6 x Internal USB 2.0

4 x Internal RS-232

1 x I²C

4 x USB 2.0

1 x Internal RS-422/485

Option

iRIS

N/A

Power

Power consumption

3.3V@1.27A, 5V@3.87A, 12V@0.54A, Vcore@7.67A, 5VSb@0.15A (Intel® Core™ i7-2600K 3.40GHz CPU with 1333MHz DDR3 2GB x 2 Memory)

System

Chipset

Intel® H61

CPU

Intel® Core™ i7/i5/i3, PentiumR, Celeron® processor

CPU Socket

LGA1155

Memory Max.

Two 240-pin 1333/1066MHz dual-channel DDR3 SDRAM DIMM (system max. 16GB)

Storage

4 x SATA 3Gb/s

Watchdog Timer

Watchdog Timer

Software programmable and supports 1~255 sec. system reset
