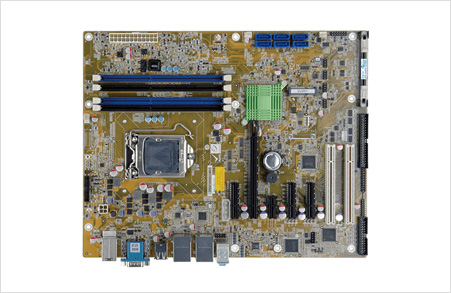

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1156A-RS-R11

CF-1156E-R11

Display

Display

VGA (up to 1920x1200 @ 60 Hz)

iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x PCIe x16 slot

3 x PCIe x4 slot (support PCIe x1)

Default setting

1 x PCIe x8 Gen 3 + 2 x PCIe x4 Gen 3 signal

Optional setting

1 x PCIe x1 slot

2 x PCI slot

FSB

FSB

N/A

I/O Interface

Audio

Realtek ALC662 HD audio codec (Line out, Mic) (2x5 pin)

Digital I/O

8-bit digital I/O (4-bit input/4-bit output)

Ethernet

LAN1: Intel® I217LM with Intel® AMT 9.0 support

LAN2: Intel® I210-AT PCIe controller with NCSI support

I/O Interface

9 x RS-232

1 x RS-422/485

2 x USB 3.0

11 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I²C

1 x PS/2 KB/MS

1 x TPM connector (2x10 pin)

I/O Interface

I/O Interface

1 x RS-232

1 x LPT

2 x LAN LED

1 x KB/MS

1 x I²C

1 x Internal RS-422/485

4 x Internal RS-232

4 x USB 3.0

1 x SMBus

2 x USB 2.0

4 x Internal USB 2.0

Option

iRIS

1 x iRIS-2400 slot

Power

Power consumption

3.3V@0.57A, 5V@4.50A, 12V@0.14A, Vcore_12V@5.20A, 5VSB@0.19A (Intel® E3-1240 v3 3.4GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory)

System

Chipset

Intel® C226

CPU

Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported

CPU Socket

LGA1150

Memory Max.

Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC unbuffered DIMMs support up to 32GB

Storage

1 x mSATA (colay SATA 6)

6 x SATA 6Gb/s (RAID 0/1/5/10 support)

Watchdog Timer

Watchdog Timer

Software programmable and supports 1~255 sec. system reset
