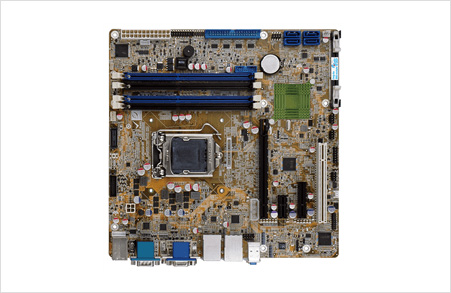

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1156A-RS-R11

CF-1156E-R11

Display

Display

Triple independent display

1 x VGA (up to 1920x1200@60Hz)

1 x DVI-D (up to 2560x1600@60Hz)

HDMI (up to 2560x1600@60Hz)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x PCIe x16 slot (Gen 3)

1 x PCIe x4 slot

1 x PCIe x1 slot

1 x PCI slot

I/O Interface

Realtek ALC662 HD Audio codec supports 5.1-channel

3 x Audio jacks (line-out, line-in, mic-in) on rear IO

1 x Front audio (2x5 pin)

Audio

Digital I/O

8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I217LM with Intel® AMT 9.0 support

LAN2: Intel® I210-AT PCIe controller with NCSI support

I/O Interface

I/O Interface

KB/MS

1 x RS-232

1 x SMBus

4 x USB 2.0

2 x Internal USB 3.0

4 x Internal USB 2.0

1 x Internal RS-422/485

4 x Internal RS-232

1 x I²C

2 x USB 3.0

Option

iRIS

1 x iRIS-2400 slot

Power

Power consumption

3.3V@0.53A, 5V@4.96A, 12V@0.12A, Vcore_12V@3.95A, 5VSB@0.18A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)

System

Chipset

Intel® Q87

CPU

Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

CPU Socket

LGA1150

Memory Max.

Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 32 GB

Storage

4 x SATA 6Gb/s (RAID 0/1/5/10 support)

Watchdog Timer

Watchdog Timer

Software programmable, support 1~255 sec. system reset
