Part Number

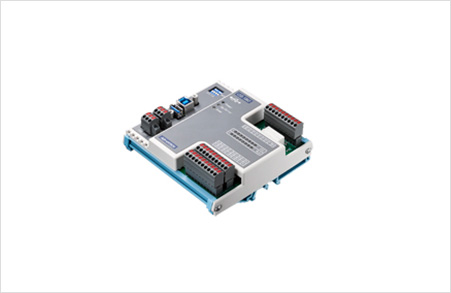

USB-5860-AE

Relay

Output Channels

8

Max. Switching Power

500VA , 60W

Relay type

Form A

Contact Rating

2A@250V AC , 2A@30V DC

Operate/Release Time

10 / 5 ms max.

Resistance

30mΩ max.

General

OS Support

Windows XP/7/8/10 and Linux

Power Consumption

Typical 240mA @ 5V; Max. 480mA @ 5V

Dimensions

120 mm x 120 mm x 40 mm

Bus

USB 3.0

I/O Connectors

Onboard removable European type connector

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Operating Temperature

0~60 (32~140°F)

Isolated Digital I/O

Opto-isolator Response Time

100us

Isolation Protection

2,500 VDC

Input Channels

8

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)
