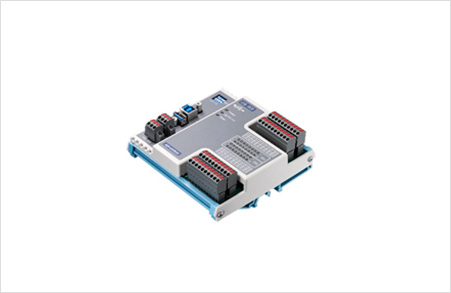

Part Number

USB-5830-AE

General

Power Consumption

Typical 240mA @ 5V; Max. 480mA @ 5V

OS Support

Windows XP/7/8/10 and Linux

Dimensions

120 mm x 120 mm x 40 mm

Bus

USB 3.0

I/O Connectors

Onboard removable European type connector

Operating Temperature

0~60 (32~140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Load current

350mA/ch (sink) @ 25°C ; 250mA/ch (sink) @ 60°C

Opto-isolator Response Time

100us

Isolation Protection

2,500 VDC

Input Channels

16

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Output Channels

16

Output Ranges

5 ~ 40 VDC
