Part Number

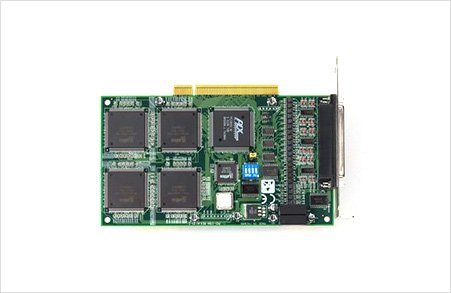

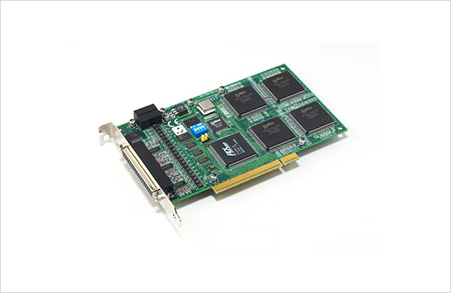

PCI-1784U-AE

General

Power Consumption

Typical: 5 V @ 200 mA; Max.: 5 V @ 450 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 mm x 100 mm (6.9" x 3.9")

Bus

PCIe

I/O Connectors

37-pin D-Sub female

Operating Temperature

0 ~ 60°C (32 ~ 140°F) (refer to IEC 60068-2-1, 2)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Timer/Counter

Resolution

32 bits

Channels

4

Max. Input Frequency

10 MHz

TTL DI/O

Input Channels

4 (Shared)

Output Channels

4 (Shared)
