Part Number

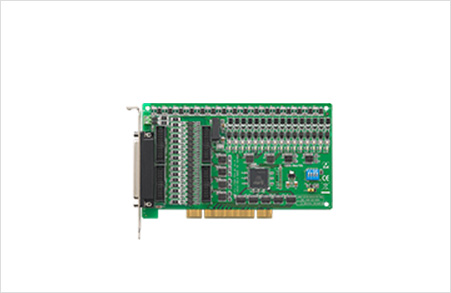

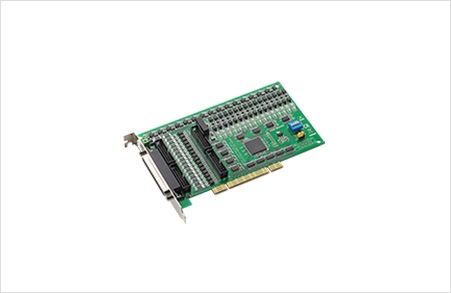

PCI-1730U-BE

General

Power Consumption

Typical: 5 V @ 250 mA, 12 V @ 35 mA, Max.: 5 V @ 400 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 mm x 100 mm (6.9" x 3.9")

Bus

PCI

I/O Connectors

37-pin D-Sub female,20-pin insulation displacement connectors

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

TTL DI/O

Input Channels

16

Output Channels

16

Isolated Digital I/O

Input Channels

16

Input Range

5 ~ 30 VDC

Output Channels

16

Output Ranges

5 ~ 40 VDC
