Part Number

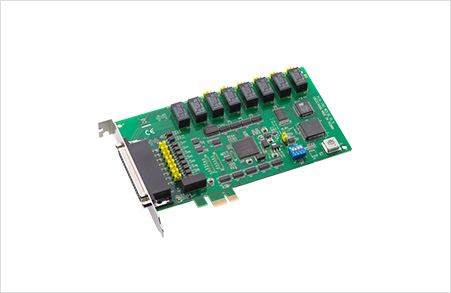

PCIE-1760-AE

General

Power Consumption

Typical: 3.3 V @ 390 mA; Max.: 3.3 V @ 490 mA, 12V @ 60 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

168 x 100 mm (6.6" x 3.9")

Bus

PCIe

I/O Connectors

1 x DB37 female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Timer/Counter

Resolution

16 bits Isolated counter and 32 bits PWM output

Channels

2

Max. Input Frequency

1 kHz

Isolated Digital I/O

Input Channels

8

Input Range

10 ~ 30 VDC

Relay Output

Max. Switching Power

62.5 VA,30 W

Channels

8
