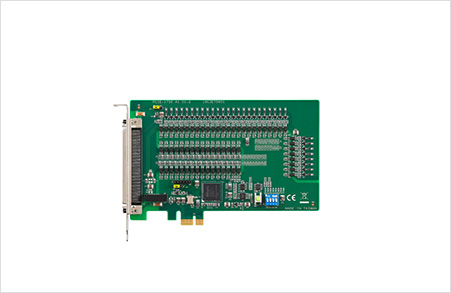

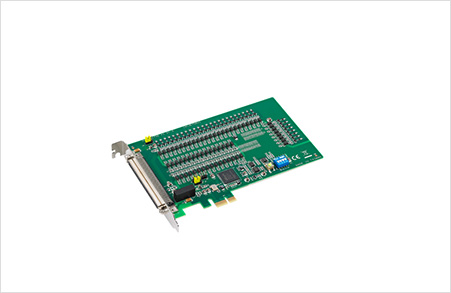

Part Number

PCIE-1756-AE

PCIE-1756H-AE

General

Power Consumption

Typical: 3.3 V @ 385 mA; Max.: 3.3 V @ 430 mA, 12V @ 55 mA

Typical: 3.3 V @ 385 mA; Max.: 3.3 V @ 430 mA, 12V @ 55 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Bus

PCIe

PCIe

I/O Connectors

1 x 100-pin SCSI female connector

1 x 100-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Input Channels

32

32

Input Range

10 ~ 30 VDC

10 ~ 30 VDC

Output Channels

32

32

Output Ranges

5 ~ 40 VDC

5 ~ 40 VDC
