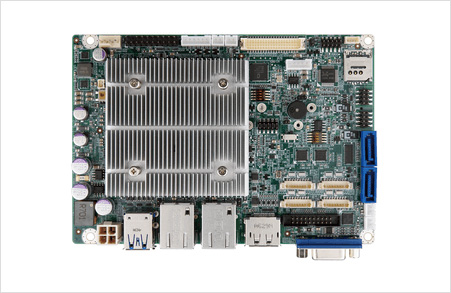

Spec Item

Description

Display

Display Output

Triple independent display

1 x DP++ (up to 4096x2160@60Hz)

1 x VGA (up to 1920x1200@60Hz)

1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)

1 x iDP (colay with VGA, support by request)

System

CPU

Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)

Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)

Intel® Atom™ E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)

Intel® Atom™ E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)

Intel® Atom™ E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)

Memory Max.

One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB

Graphcis Controller

Intel® HD Graphics Gen9 Low Power; 18 Execution Units 4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC

I/O Interface

Expansion

1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)

1 x Full/Half-size PCIe Mini slot (supports SIM card holder)

Power

Power consumption

12V@2.57A (Intel® Pentium® N4200 up to 2.5GHz with 8GB DDR3L memory)

Power Supply

+12V DC input power (AT/ATX mode)

Environment

Operating Temperature

-20°C ~ 70°C

Safety & EMC

CE/FCC compliant

Humidity

5% ~ 95%, non-condensing

Storage Temperature

-20°C ~ 70°C

Dimensions

Dimensions

146 x 102 (mm)

Weight

Weight

600g / NW: 250g

Note

Note

1 x TPM (2x10 pin)

Watchdog Timer

Watchdog Timer

Software programmable, supports 1~255 sec. system reset

CPU Cooler

CPU Cooler

1 x System fan connector (1x4 pin)

BIOS

BIOS

AMI UEFI BIOS

HW Monitor

HW Monitor

* Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

* LAN LED

2 x LAN LED (1x2 pin)

I/O Interface

I/O Interface

2 x USB 3.0(External)

Audio Codec(Realtek ALC662 HD codec)

1 x Audio(Front, 2x5 pin)

2 x SATA 6Gb/s(with 5V SATA power connector - no RAID)

1 x Digital I/O(8-bit, 2x5 pin)

2 x Internal RS-232(1x9 pin, P=1.25)

4 x Internal USB 2.0(2x4 pin, P=2.0)

2 x Internal RS-232/422/485(1x9 pin, P=1.25)

1 x SMBus(1x4 pin, P=2.0)

2 x Ethernet(PCIe GbE LAN Realtek RTL8111 Controller)
