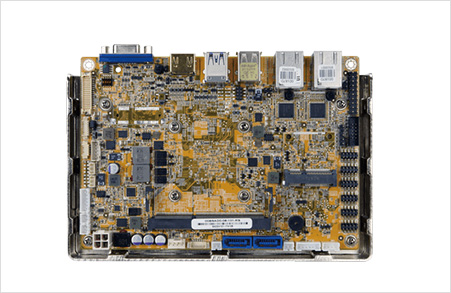

Spec Item

Description

Dimensions

Dimensions

115mm x 165mm

Display

Display Output

1 x VGA (up to 2048x1536@60Hz)

1 x HDMI (up to 3840x2160@60Hz)

1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)

Environment

Humidity

5% ~ 95%, noncondensing

Operating Temperature

0°C ~ 60°C

Storage Temperature

-10°C ~ 70°C

I/O Interface

Ethernet

LAN1: Intel® I210-AT PCIe controller with NCSIsupport.

LAN2: Intel® I211-AT PCIe controller.

I/O Interface

1 x KB/MS (1x6 pin)

4 x USB 2.0 (2x4 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0)

5 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6Gb/s with 5V SATA power connector (no RAID)

I/O Interface

I/O Interface

1 x Digital I/O(8-bit digital I/O (2x5 pin))

2 x Ethernet

1 x Expansion( Full-size PCIe Mini card slot

(supports mSATA co-lay SATA port 2))

1 x Front panel(1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin))

1 x HDMI(up to 3840x2160@60Hz)

1 x I²C(1x4 pin)

1 x Internal Audio(2x5 pin)

5 x Internal RS-232(2x5 pin, P=2.0)

1 x Internal RS-422/485(1x4 pin, P=2.0)

4 x Internal USB 2.0(2x4 pin, P=2.0)

1 x KB/MS(1x6 pin)

2 x SATA 6Gb/s(With 5V SATA power connector (no RAID))

1 x SMBus(1x4 pin)

2 x USB 2.0

2 x USB 3.0

1 x VGA(up to 2048x1536@60Hz)

Internal Connector

Internal Connector

1 x S/PDIF (1x4 pin)

1 x TPM (2x10 pin)

1 x System smart fan (1x4 pin)

Option

iRIS

1 x iRIS-1010 slot (support by request)

Power

Power consumption

12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8 GB DDR3 memory)

Power Supply

12V only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode.

System

CPU

AMD® Embedded G-Series “LX” SoC

GX-218GL on-board Soc (1.8GHz, dual core, 1MB cache, TDP=15W)

GX-215GL on-board Soc (1.5GHz, dual core, 1MB cache, TDP=15W)

GX-210KL on-board Soc (1.0GHz, dual core, 1MB cache, TDP=4.5W)

Memory Max.

One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB

Watchdog Timer

Watchdog Timer

support 1~255 sec. system reset

Weight

Weight

NW: 350g
