Part Number

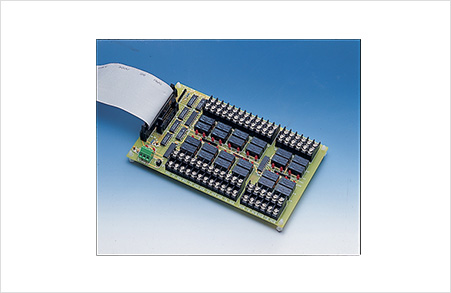

PCLD-785B-AE

General

Power Consumption

5 V @ < 100 mA; 12 V @ 33 mA for each relay

Power Input

20-pin connector: 5 VDC:Jumper select PC bus orexternal supply, 12 VDC: Jumper select PC bus or external supply, 50-pin connector: external, 12 V supply

Dimensions (L x W)

132 x 220 mm

Relay

Channels

16 (CN1, 20-pin conn.), 24 (CN2, 50-pin conn.)

Contact Ratings

120 VAC @ 0.5 A, 30 VDC @ 1 A

Contact Resistance

< 100 mO

Operation Time

5 ms max.

Insulation Resist.

100 MO

Life Expectancy

5 x 105 @ 110 VAC /0.3 A, 5 x 105 @ 24 VDC /1.25 A

Relay Type

SPDT (Single-Pole Double-Throw) Form C

Release Time

5 ms max.
