Part Number

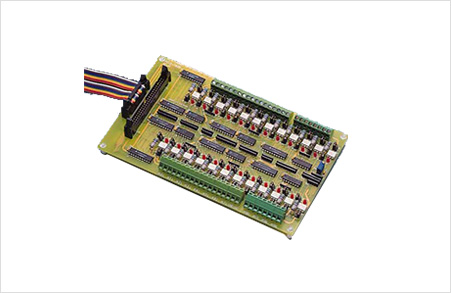

PCLD-782B-AE

General

Mounting

4 x screw holes for flat surface mounting

LED Indicators

Indicates input logic status

Dimensions (L x W)

4U– 220 x 132mm (8.7" x 5.2")

DI Connectors

Screw terminals (#12 ~ 22 AWG)

Controller Connector

1 x 20-pin box header (CN1) and 1 x 50-pin box header (CN2)
