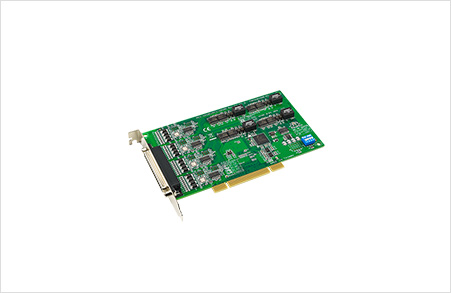

PCI-1610
符合PCI总线协议2.2
支持串行速度高达921.6 kbps,任意波特率设置
4 个RS-232端口
OXuPC1954 UART支持128字节先进先出FIFO标准
PCI即插即用自动分配输入/输出地址
提高系统性能的中断状态寄存器
通用PCI,支持3.3伏或5伏PCI总线信号
10,00伏直流电浪涌保护
规格

Part Number

PCI-1610B-DE

PCI-1610C-CE

Communications

Ports

4

4

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V354

XR17V354

Serial/CAN/GPIB/USB

RS-232

RS-232

Environment

Operating-Temperature

-10 ~ 60° C (14 ~ 140° F)

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

General

Bus

PCI

PCI

Connectors

1 x Female DB37

1 x Female DB37

Power Consumption

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications

CE, FCC, RoHS

CE, FCC, RoHS

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

174.65 x 106.67 mm (6.88”x 4.2”)

174.65 x 106.67 mm (6.88”x 4.2”)

Protection

ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Software

Bundled Software

ICOM Tools

ICOM Tools
