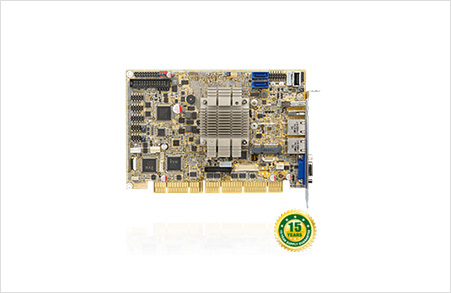

Spec Item

Description

Environment

Humidity

N/A

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x microSD socket

1 x PCIe Mini slot

PCIe-PCI bridge: ITE8892E

LPC-ISA bridge: F85226FG

PCI and ISA signal via golden finger

I/O Interface

Audio

Support 7.1 channel HD audio by IEI AC-KIT-892HD kit 1 x Analog audio (2x5 pin)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Display

Dual independent display VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Ethernet

LAN1: Intel® I211-AT PCIe controller

LAN2: Intel® I211-AT PCIe controller

I/O Interface

I/O Interface

1 x I²C

2 x Internal RS-232

1 x Internal RS-422/485

5 x Internal USB 2.0

1 x KB/MS

2 x LAN LED

1 x LPT

1 x SMBus

1 x USB 2.0

1 x USB 3.0

1 x VGA

Power

Power consumption

5V@1.55A,12V@0.74A (Intel® Atom™ E3845 1.91GHz CPU with one 8GB 1333MHz memory)

Storage

Storage

1 x mSATA (SATA 3Gb/s, shares with SATA1)

2 x SATA 3Gb/s

System

CPU

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

CPU Socket

On Board

Memory Max.

One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM(system max. 8GB)

Watchdog Timer

Watchdog Timer

Software programmable supports 1~255 sec. system reset
