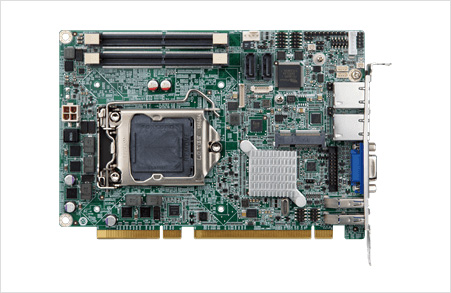

Spec Item

Description

Dimensions

Dimensions

169 mm x 126 mm

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

I/O Interface

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support LAN2: Intel® I211 PCIe controller

Expansion

16-lane PCIe signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) 4-lane PCIe signal from Q170 via golden finger 1 x PCIe Mini supports mSATA & USB 2.0

I/O Interface

I/O Interface

2 x Internal RS-232/422/485 4 x Internal USB 2.0 1 x KB/MS((1 x 6Pin Wafer)) 2 x SATA 6Gb/s

Power

Power consumption

5V@0.15A, 12V@8.39A, 3.3V@0.11A, 5VSB@0.21A (Intel® Core™ i7-6700K 4.0GHz with two 16 GB 2133 MHz DDR4 memory)

System

Chipset

Intel® Q170

CPU

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

Memory Max.

Two 260-pin 1867/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 32 GB memory

Weight

Weight

GW: 1000g / NW: 420g
