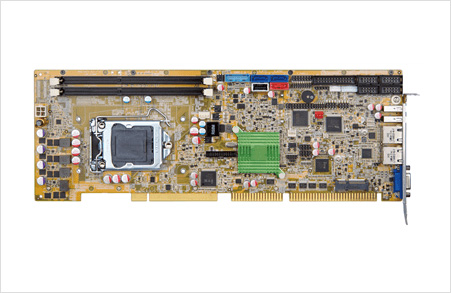

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1150SB-R11 CF-1150SC-R20 CF-1150SE-R10 CF-1150SF-R10

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x mSATA (SATA 3Gb/s) 1 x PCIe Mini slot PCI and ISA signal via golden finger

I/O Interface

Audio

7.1-channel HD Audio supported by IEI AC-KIT-892HD kit

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Display

Dual independent display VGA (up to 1920x1200@60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Ethernet

LAN1: Intel® I217-LM Ethernet controller LAN2: Intel® I211-AT Ethernet controller

I/O Interface

I/O Interface

5 x Internal USB 2.0 1 x Internal RS-422/485 4 x Internal RS-232 1 x VGA 2 x Internal USB 3.0 2 x LAN LED 1 x LPT 2 x USB 2.0 1 x KB/MS

Power

Power consumption

5V@3.4A, 12V@0.36A, Vcore_12V@7.48A, 3.3V@1.42A, 5VSB@0.13A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)

Storage

Storage

2 x SATA 6Gb/s 1 x SATA 3Gb/s (Intel® H81 supports AHCI, no RAID)

System

Chipset

Intel® H81

CPU

4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

CPU Socket

LGA1150

Memory Max.

Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16 GB

Watchdog Timer

Watchdog Timer

Software programmable supports 1~255 sec. system reset
