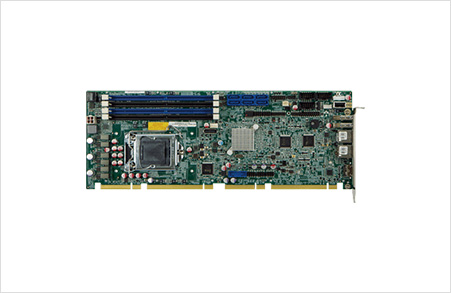

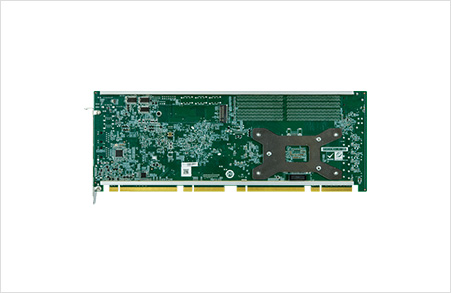

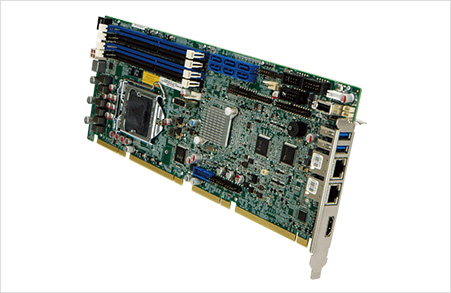

PICMG 1.3 full-size CPU card

显示

显示输出

Dual display supported 1 x HDMI (up to 4096 x 2304@30Hz) 1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

系统

CPU

LGA1151 socket supports Intel® Xeon® E3, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor

芯片组

Intel® C246

最大内存

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

CPU 插座

LGA1151

图形控制器

Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0

I/O 接口

以太网

LAN1: Intel® I219LM PHY LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT)

数字 I/O

8-bit digital I/O (2x5 pin)

音频

Support 7.1 channel HD audio by IEI AC-KIT-892HD kit

扩展

1 x M.2 M key 1 x PCIe x16 & 4 x PCIe x1 signal via golden finger 4 x PCI signal via golden finger

I²C

1 x I²C (1x4 pin)

I/O 接口

I/O 接口

1 x Digital I/O(8-bit digital I/O (2x5 pin))

1 x Display / HDMI(up to 4096 x 2304@30Hz)

2 x Ethernet(LAN1: Intel® I219LM PHY

LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT))

6 x Expansion(1 x M.2 M key,

1 x PCIe x16 & 4 x PCIe x1 signal via golden finger,

4 x PCI signal via golden finger)

1 x Front panel((Power LED, HDD LED, Speaker, Power Button, Reset Button))

1 x I²C(1x4 pin)

1 x Internal Audio(Support 7.1 channel HD audio by IEI AC-KIT-892HD kit)

1 x Internal Display(up to 4096 x 2304@60Hz)

3 x Internal RS-232(2x5 pin, P=2.54)

1 x Internal RS-422/485(1x4 pin, P=2.0)

6 x Internal USB 2.0(2x4 pin, P=2.54)

2 x Internal USB 3.0(USB 3.1 Gen 1 (5Gb/s) (2x10 pin)

1 x KB/MS(1x6 pin)

2 x LAN LED(1x2 pin)

6 x SATA 6Gb/s(RAID 0/1/5/10 supported)

1 x SMBus(1x4 pin)

1 x USB 2.0(Type A 180°)

2 x USB 3.0(USB 3.1 Gen 1 (5Gb/s) (Rear IO type A))

电源

功耗

5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A (4.0 GHz Intel® Core™ i7-8700K CPU with four 16 GB 2666 MHz DDR4 memory)

电源

AT/ATX power supply Support AT/ATX mode ErP/EuP Compliant

运行环境

工作温度

-20°C ~ 60°C

湿度

5% ~ 95%, non-condensing

存储

存储

6 x SATA 6Gb/s (RAID 0/1/5/10 supported)

尺寸

尺寸

338 mm x 126 mm

重量

重量

GW: 1000g / NW: 500g

扩展插槽

扩展插槽

1 x M.2 M key 1 x PCIe x16 & 4 x PCIe x1 signal via golden finger 4 x PCI signal via golden finger

看门狗计时器

看门狗计时器

Software programmable support 1~255 sec. system reset

BIOS

BIOS

AMI UEFI BIOS

标准

标准

CE/FCC compliant

内部连接器

内部连接器

1 x KB/MS (1x6 pin) 1 x RS-422/485 (1x4 pin, P=2.0) 2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin) 3 x RS-232 (2x5 pin, P=2.54) 6 x SATA 6Gb/s (RAID 0/1/5/10 supported) 6 x USB 2.0 (2x4 pin, P=2.54)

特征

特征

PICMG 1.3 full-size CPU card

LGA1151 Intel® Xeon® E3, 8th/9th generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor supported

Dual-channel DDR4 2666MHz

Support HDMI and internal DP display

Intel® PCIe GbE with Intel® AMT 11.0 supported

Support M.2 M key for storage (PCIe x4)

Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
